EGR Valve Tube

REMOVAL







1. Remove the bolts and remove the engine appearance cover.

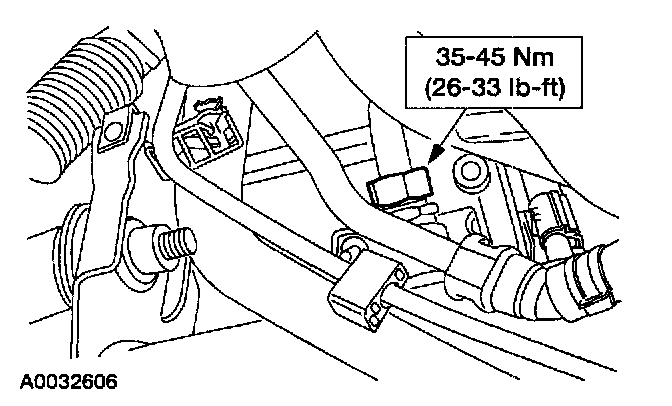

2. Disconnect the Exhaust Gas Recirculation (EGR) valve upper tube fitting.







3. Disconnect the electrical connector and remove the differential pressure feedback EGR sensor from the tube.
4. Raise and support the vehicle.

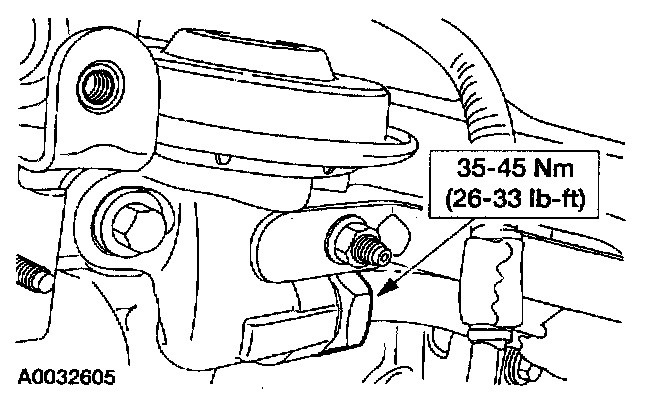

5. Disconnect the EGR lower tube fitting.
6. Lower the vehicle.
7. Remove the EGR tube.

INSTALLATION
1. To install, reverse the removal procedure.
