Auxiliary Climate Control

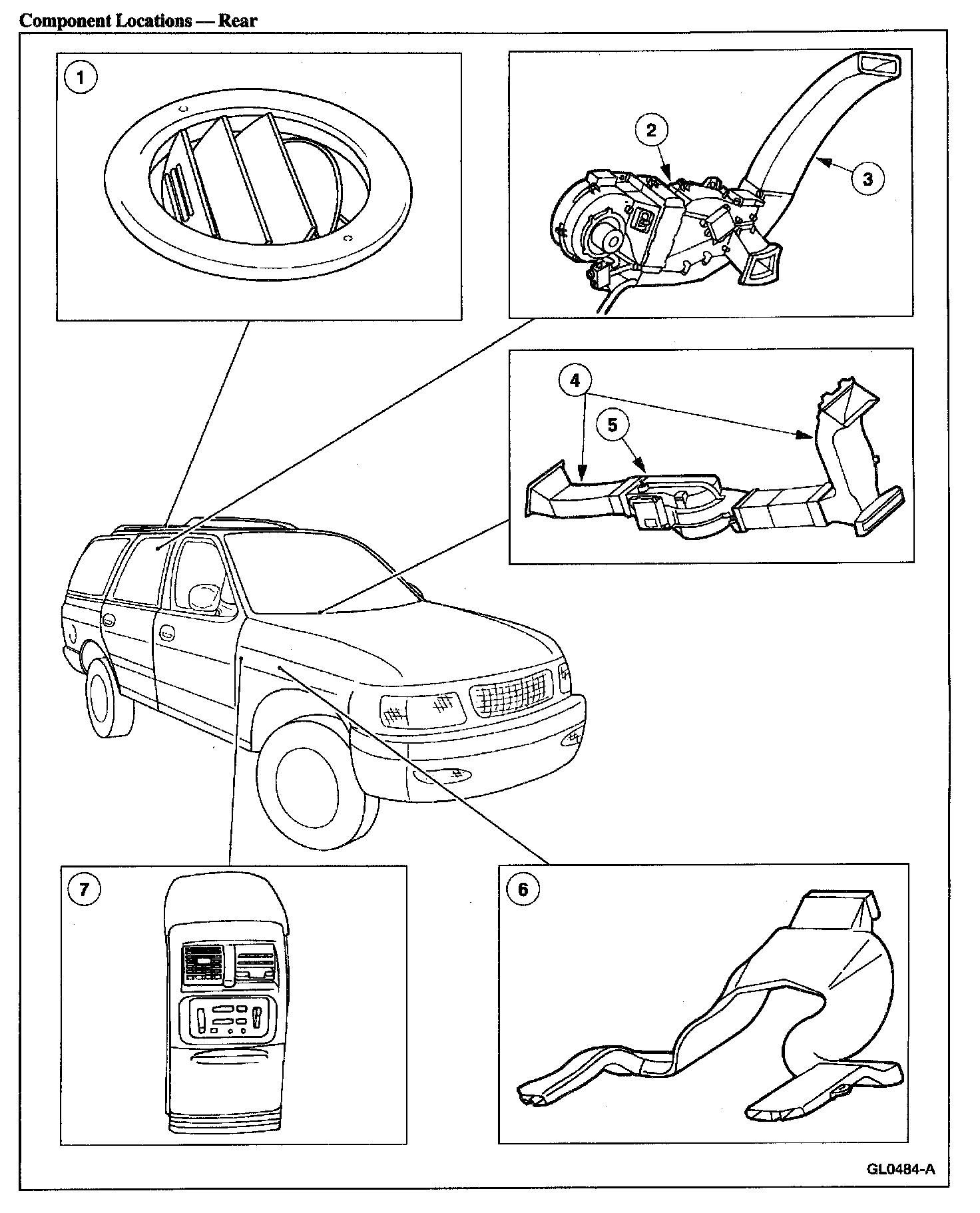

Component Locations - Rear, Part 1:

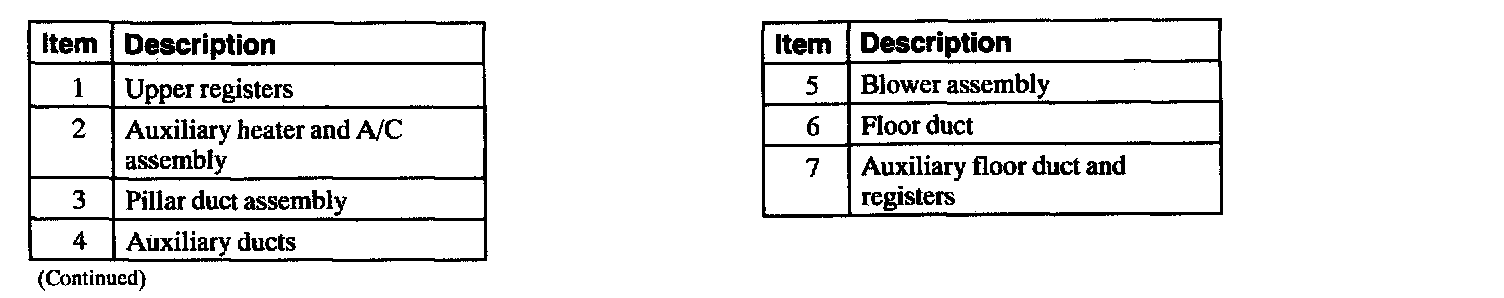

Component Locations - Rear, Part 2:

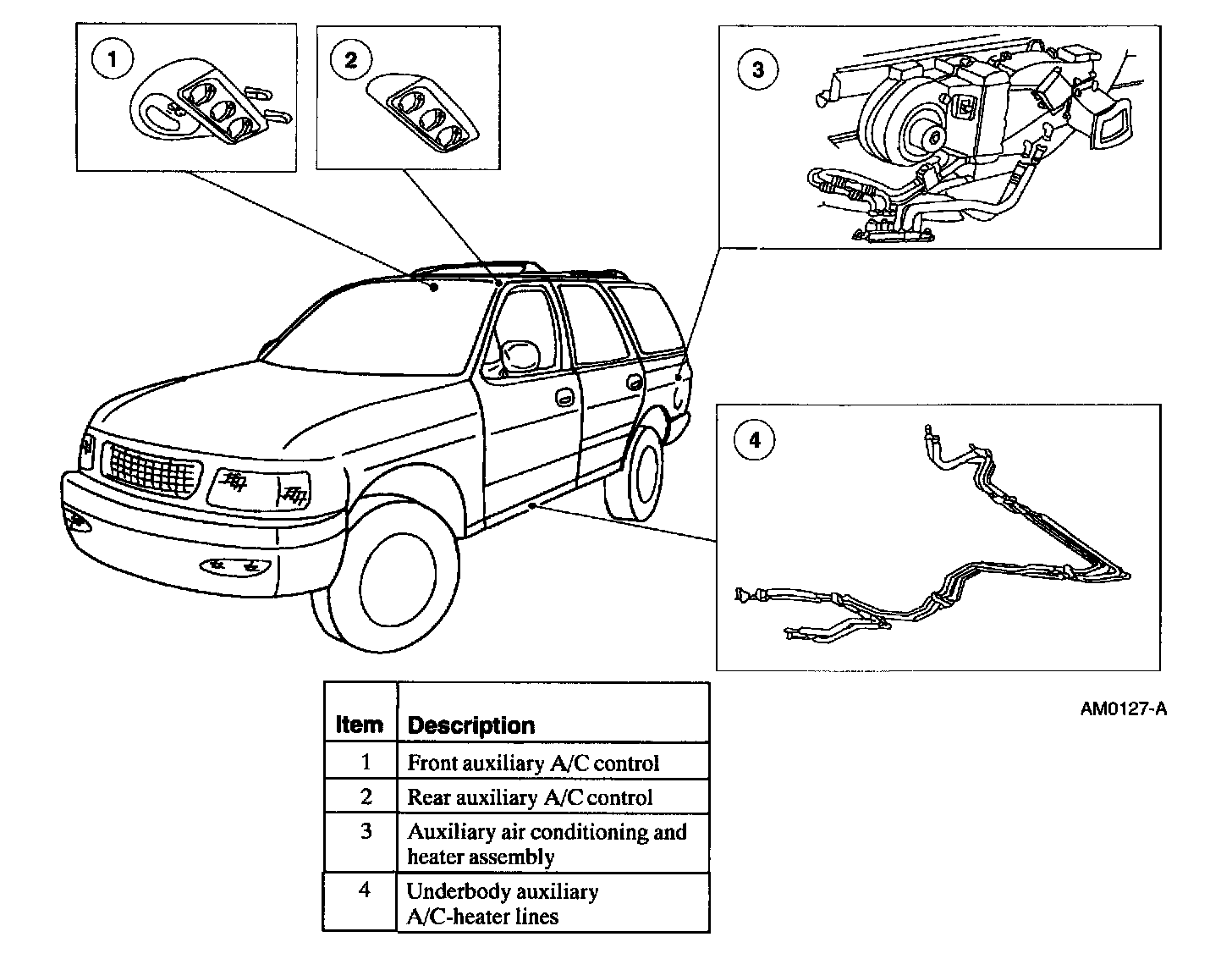

Auxiliary A/C Components And Controls:
