Auxiliary Climate Control

REMOVAL
1. Perform the Refrigerant Discharging and Recovery Procedure.
2. Remove the quarter trim panel access cover

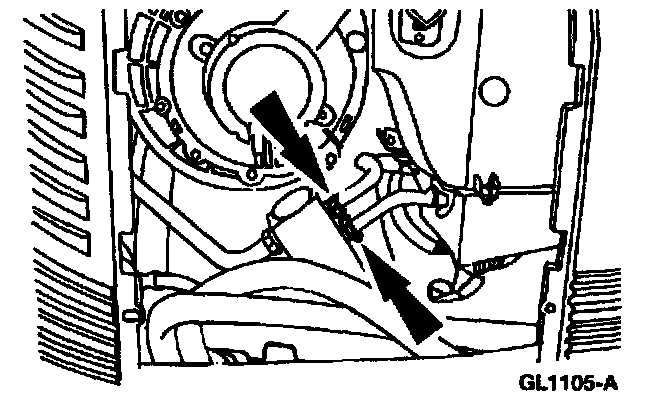

3. Disconnect the A/C evaporator core from the A/C evaporator expansion valve.

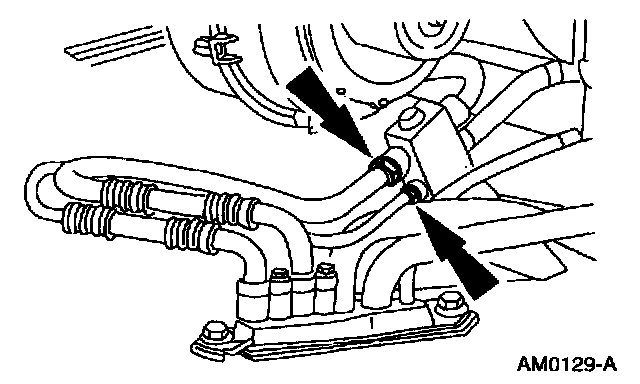

4. Disconnect the A/C lines and remove the thermostatic expansion valve.

INSTALLATION

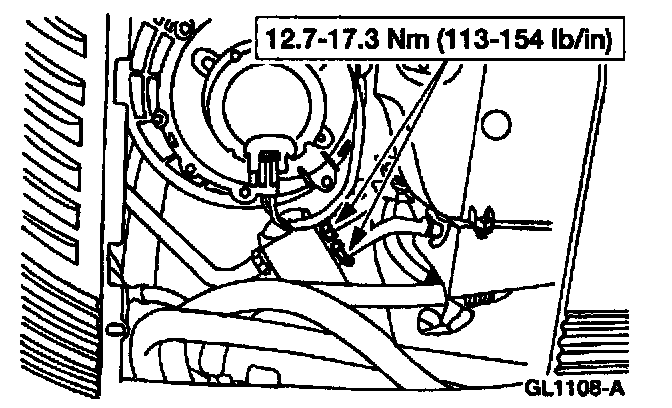

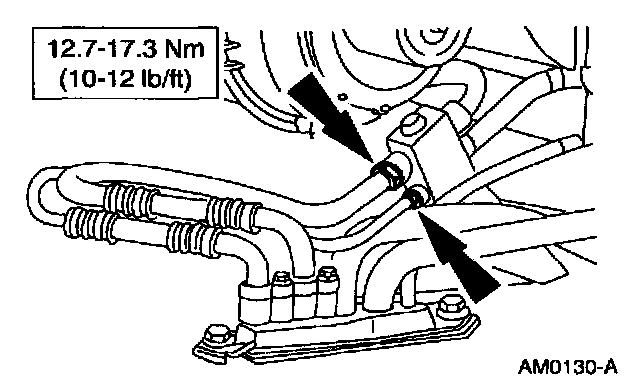

1. To install, reverse the removal procedure.
