Auxiliary Climate Control

REMOVAL
1. Remove the air conditioning and heater assembly.

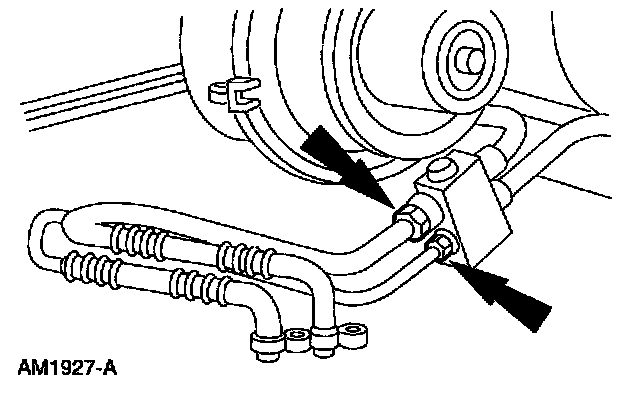

2. Remove the auxiliary A/C evaporator lines.

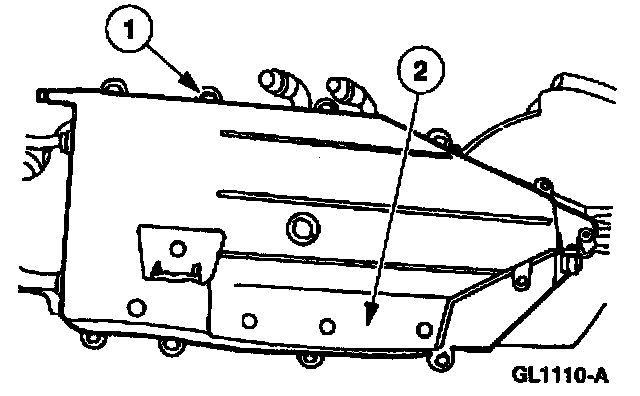

3. Remove the evaporator/heater core access cover.
1 Remove the ten bolts.
2 Remove the evaporator/heater core access cover.

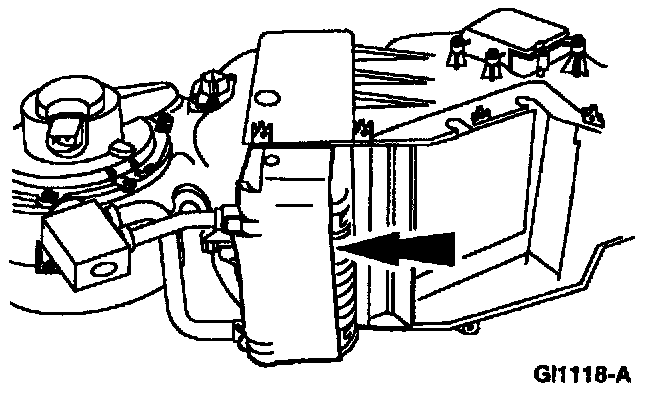

4. Remove the A/C evaporator core.

INSTALLATION

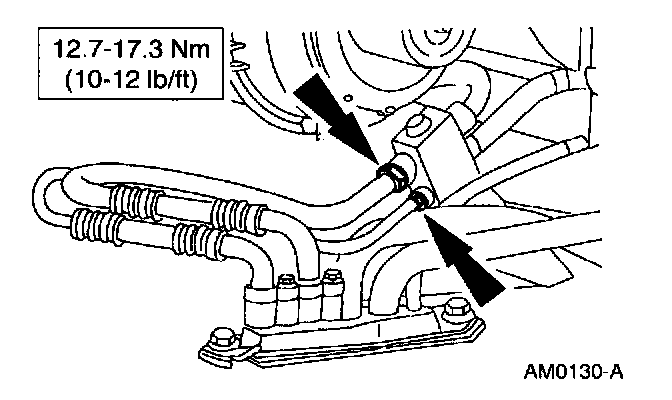

1. To install, reverse the removal procedure.
