Blower Motor Resistor: Service and Repair

Blower Motor Resistor - Auxiliary

REMOVAL
1. Remove the LH quarter trim panel access cover.

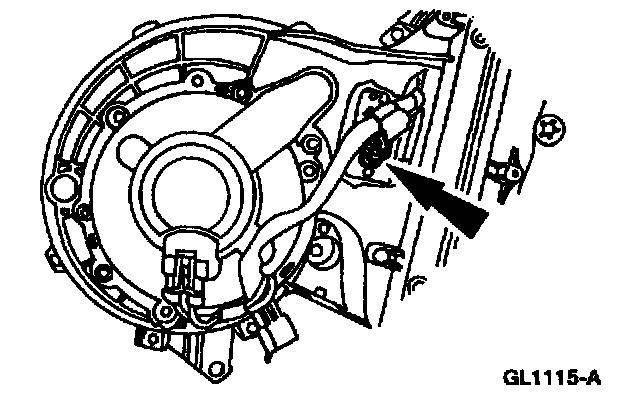

2. Disconnect the electrical connector.

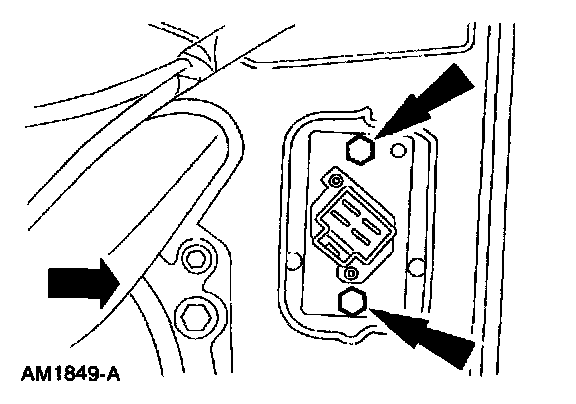

3. Remove the bolts and remove the A/C blower motor resistor.

INSTALLATION
1. To install, reverse the removal procedure.
