Brake Disc

Removal

1. NOTE: When removing the rear disc brake caliper in this procedure, it is not necessary to disconnect the rear wheel brake hose.

Remove the rear disc brake caliper.





2. NOTE: If the brake disc binds on the parking brake shoe and lining, remove the adjustment hole access plug and contract the parking brake shoe and lining.

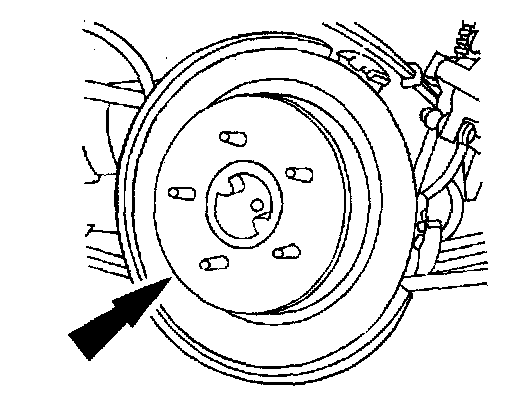

Remove the brake disc.
1 Remove the press-on keeper nuts, if so equipped.
2 Remove the brake disc.

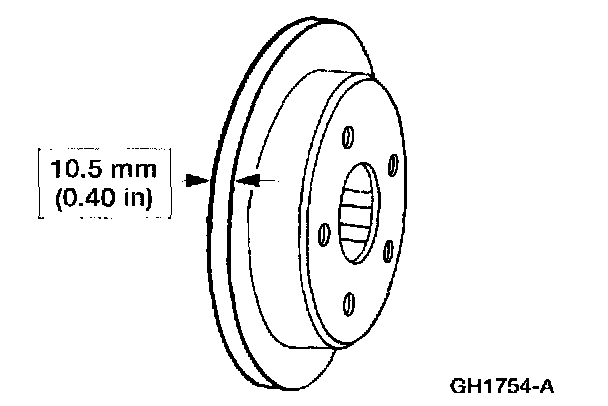

3. Inspect the brake disc.
^ Install a new brake disc if not within specification.

Installation





1. Install the brake disc.
2. Install the rear disc brake caliper.
