Rear Cross-Member: Service and Repair

CROSSMEMBER - TRANSMISSION

Removal and Installation
1. Raise and support the vehicle.

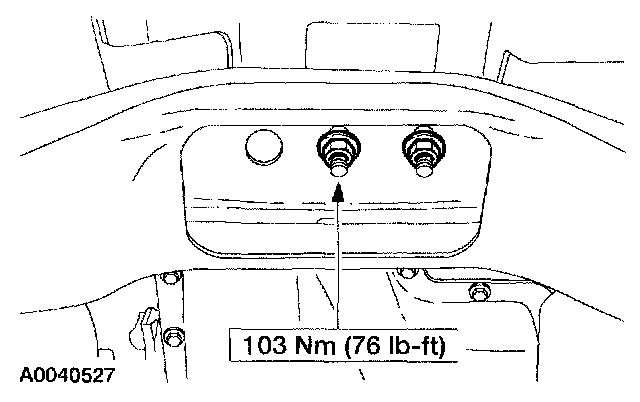

2. Remove the transmission mount nuts.
3. Support the transmission.

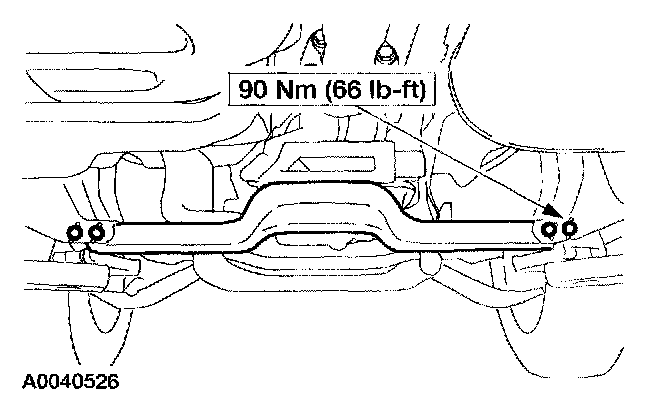

4. Remove the transmission crossmember bolts and transmission crossmember.
5. To install, reverse the removal procedure.
