Body Support - Number 1

BODY SUPPORT - NUMBER 1

Removal and Installation

WARNING: If equipped with air suspension, the electrical power to the air suspension system must be shut down prior to hoisting, jacking or towing an air suspension equipped vehicle. This can be accomplished by turning off the air suspension switch located at the left rear interior of the vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.

NOTE: Left side shown, right side similar.

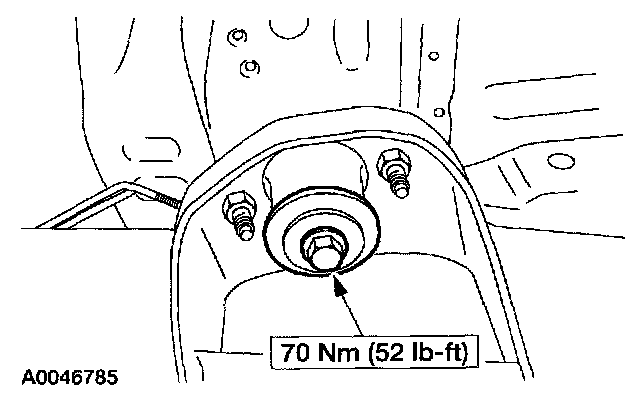

1. Remove the body mount bolt.

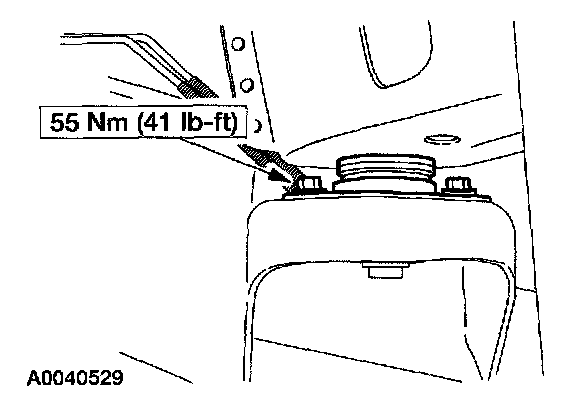

2. Loosen the remaining body mount bolts.







3. Raise the vehicle body enough to remove the body mount bolts and body mount.

4. NOTE:
- No lubricants of any kind are to be used during body mount installation.
- Do not reuse body mount fasteners. New fasteners must be installed for each fastener that has been removed or loosened.

To install, reverse the removal procedure.
