Quarter Window Motor: Service and Repair

REMOVAL
1. Remove the quarter trim panel.

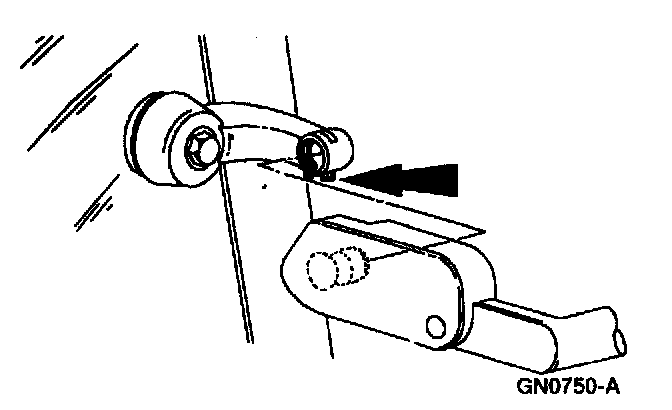

2. Unclip the quarter window regulator from the quarter window.

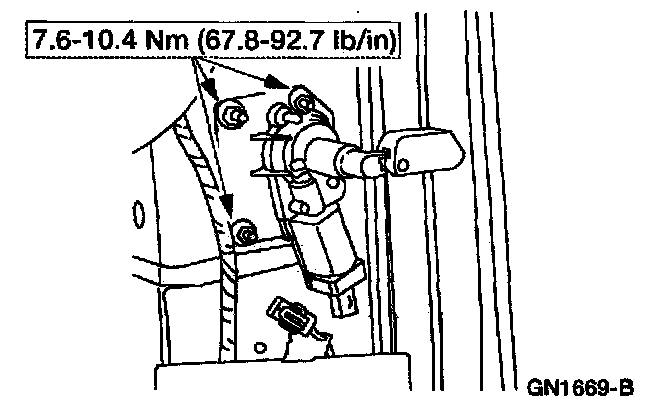

3. Remove the rear quarter glass motor.
1 Disconnect the electrical connector.
2 Remove the nuts and the rear quarter glass motor.

INSTALLATION







1. To install, reverse the removal procedure.
