4R100

Transmission Insulator and Retainer

Special Tools:

Special Tool(s)

Removal

1. NOTE: All gasoline vehicles will have new adaptive shift strategies. Whenever the vehicle's battery has been disconnected for any type of service or repair the strategy parameters that are stored in the Keep Alive Memory (KAM) will be lost. The strategy will start to relearn once the battery is reconnected and the vehicle is driven. This is a temporary condition and will return to normal operating condition once the Powertrain Control Module (PCM) relearns all the parameters from the driving conditions. There is no set time frame for this process. If this concern is present during downshifts or converter clutch apply, it is not the fault of the shift strategy and will require diagnosis.

The customer needs to be notified that they may experience slightly different upshifts either soft or firm and that this is a temporary condition and will eventually return to normal operating condition.
Disconnect the battery ground cable.

2. Raise the vehicle on a hoist.





3. Remove the nuts.





4. Remove the transmission fluid pan bolts.

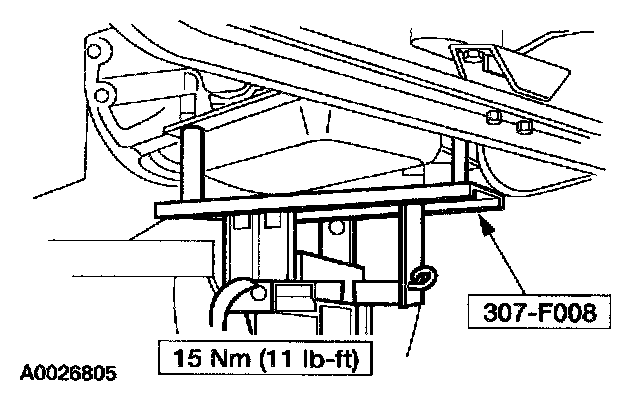

5. Install the high lift transmission jack with the special tool to the transmission.





6. CAUTION: Be sure not to raise the back of the transmission too high, if it makes contact with the underbody, damage to the TSS and OSS sensors will occur.

Remove the rear transmission mount.
1 Raise the transmission up off the rear crossmember support.
2 Remove the bolts.
3 Remove the rear transmission mount.

Installation





1. CAUTION: Be sure not to raise the back of the transmission too high, if it makes contact with the underbody, damage to the TSS and OSS sensors will occur.

Install the rear transmission mount.
1 Raise the transmission up off the rear crossmember support.
2 Install the rear transmission mount.
3 Install the bolts.





2. Lower the transmission onto the transmission support crossmember.





3. Install the nuts.





4. Remove the high lift transmission jack with the special tool from the transmission.





5. Reinstall the transmission fluid pan-to-case retaining bolts.
6. Lower the vehicle.
7. Connect the battery ground cable.
