Leak Detection Valve: Service and Repair
REMOVAL1. Remove the evaporative emission canister.
2. If required, remove the retainer.
^ Slide the retainer off the bracket.

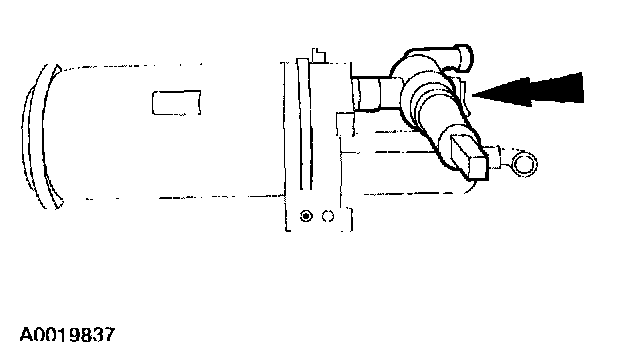

3. Remove the evaporative emission canister vent solenoid.
NOTE:
^ Inspect and replace the O-ring seal as necessary.
^ A twisting and pulling motion is required to remove the canister vent solenoid.
INSTALLATION
1. To install, reverse the removal procedure.
^ Carry out the evaporative emission system leak test. Evaporative Emission System Leak Test
^ Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
NOTE: Lubricate O-ring seals with MERPOL(R) O-ring Seal Lubricant or equivalent meeting Ford specification ESE-M99B144-B.
