Brake Disc Shield

Removal
1. Remove the brake disc.
2. On 4x4 vehicles, remove the wheel hub.

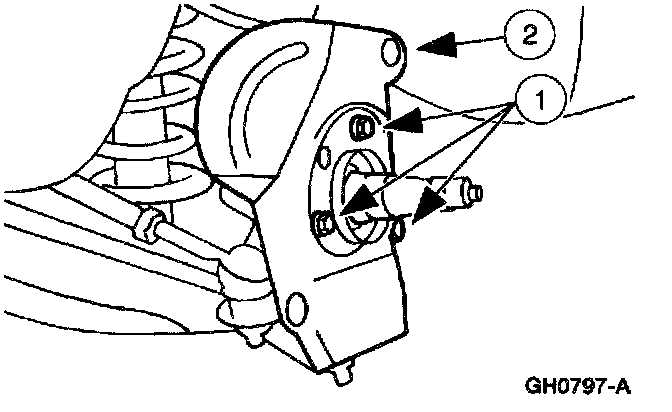

3. On 4x2 vehicles, remove the brake disc shield.
1 Remove the brake disc shield screws.
2 Remove the brake disc shield.

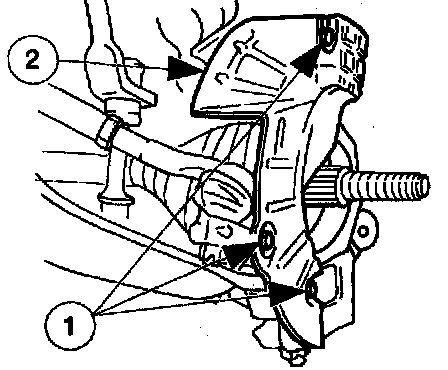

4. On 4x4 vehicles, remove the brake disc shield.
1 Remove the screws.
2 Remove the brake disc shield.

Installation

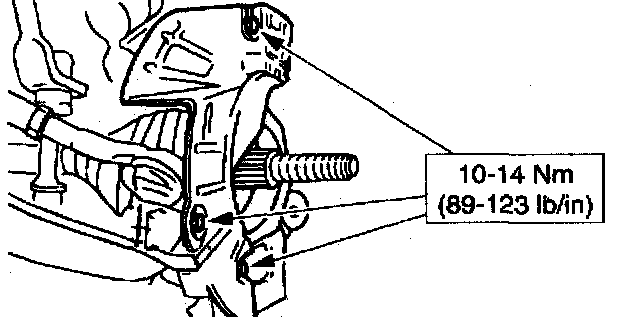

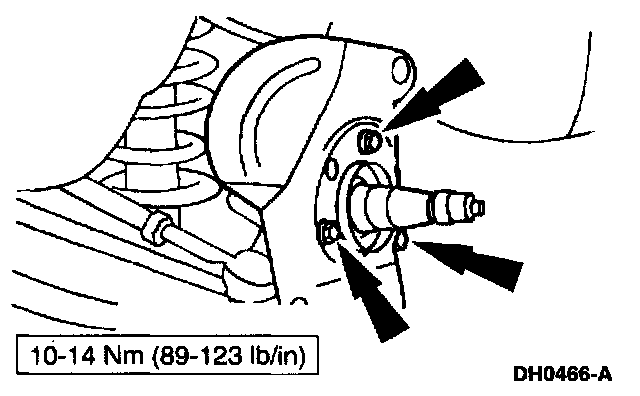

1. To install, reverse the removal procedure.
