Front

Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the front brake disc. Service and Repair

3. Remove the wheel hub and bearing. Service and Repair

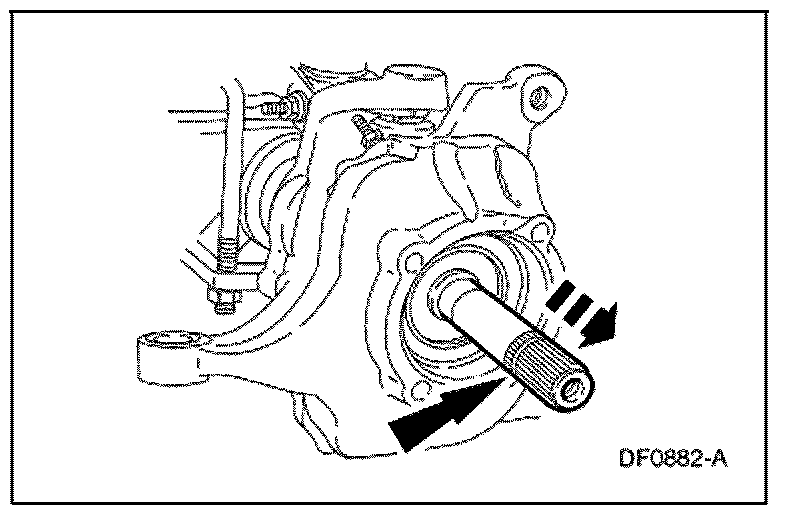

4. Using a drift, drive the axle shaft main seal out of the wheel knuckle.

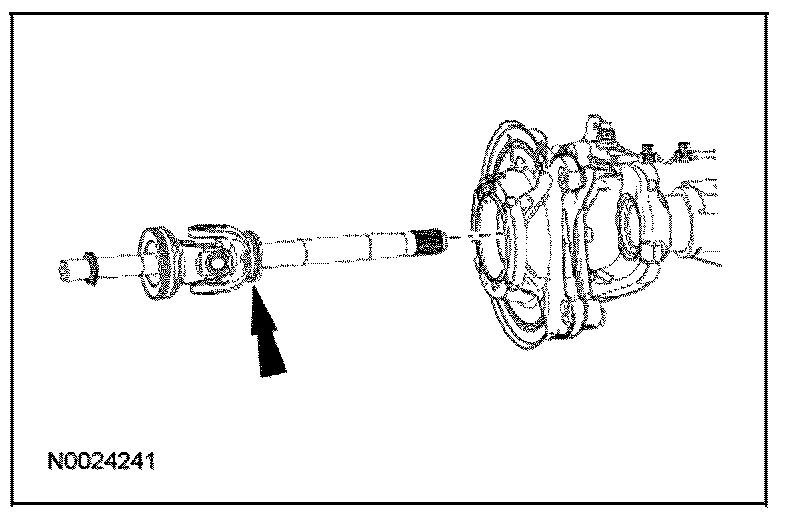

5. Remove the axle shaft and main seal.






6. Remove the axle shaft seal.

Installation

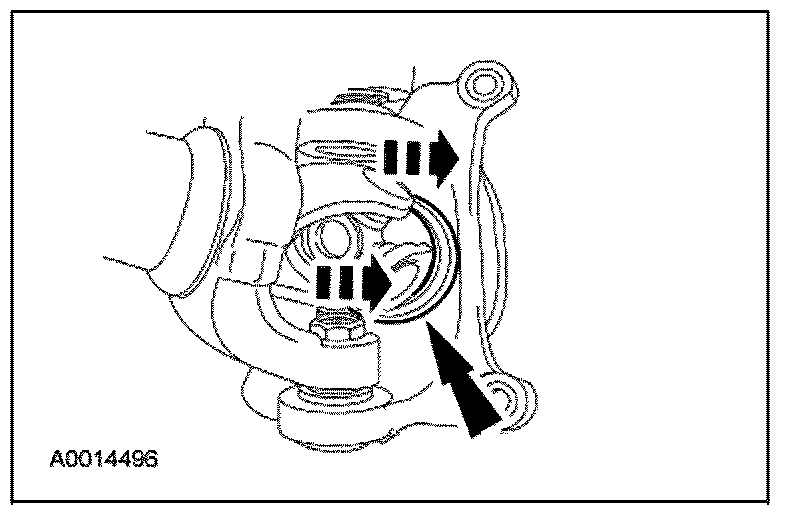

1. Install the axle shaft seal.






2. Install the new main seal onto the axle shaft.
1. Position the main seal onto the axle shaft.

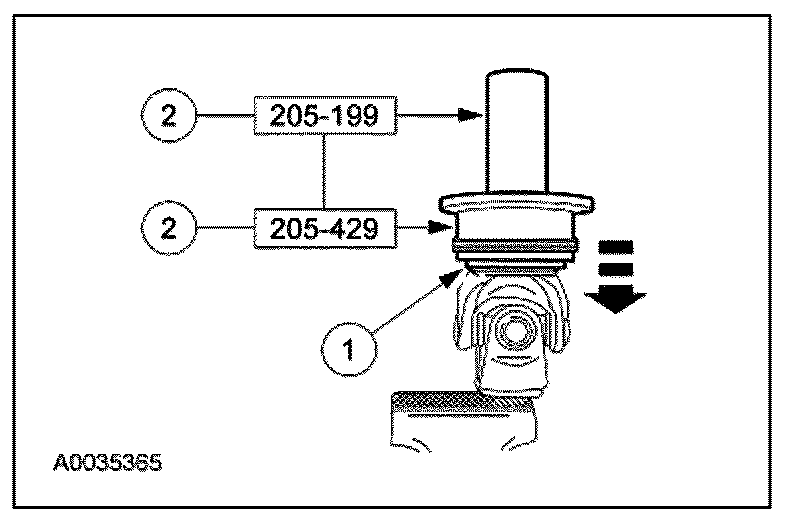

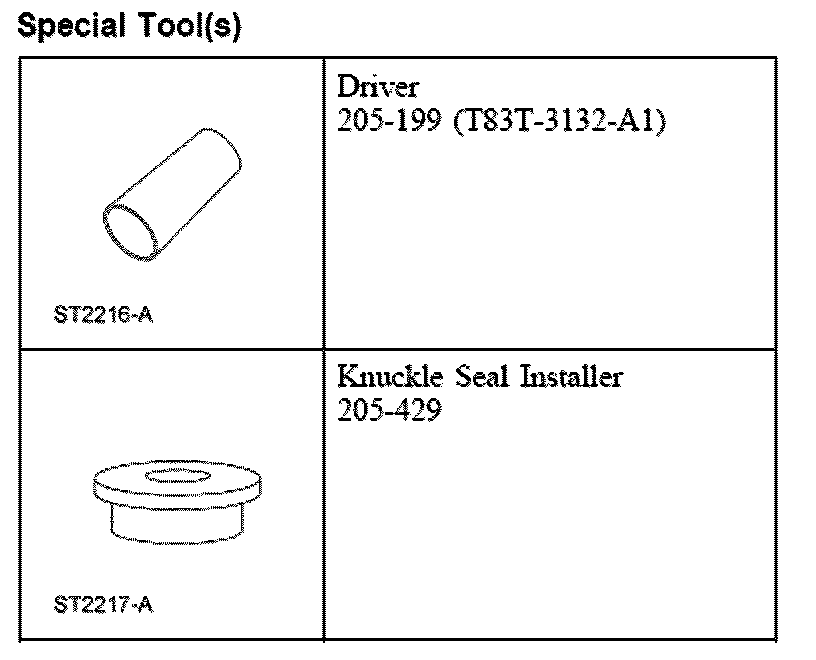

2. Using the special tools and a hammer, seat the main seal onto the axle shaft.

3. Position the axle shaft into the axle housing.

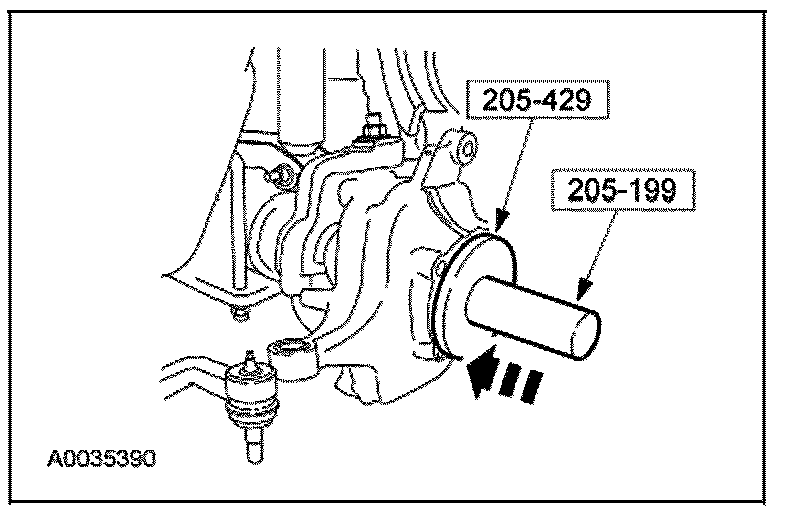

4. Using the special tools and a hammer, install the main seal into the wheel knuckle.

5. Install the wheel hub and bearing. Service and Repair

6. Install the front brake disc. Service and Repair
