Pilot Bearing: Service and Repair

Pilot Bearing

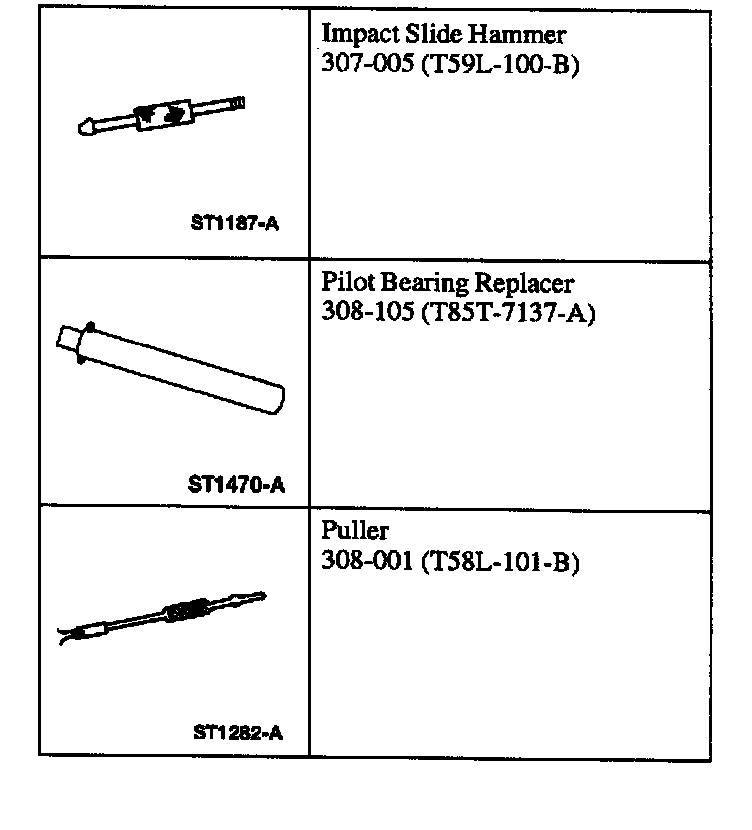

Special Tools:

Special Tool(s)

Removal





1. Using the special tools, remove the transmission input shaft pilot bearing, and discard it.

Installation





1. CAUTION: Never install a used transmission input shaft pilot bearing.

NOTE: The new transmission input shaft pilot bearing is pre-greased and does not require additional lubrication.

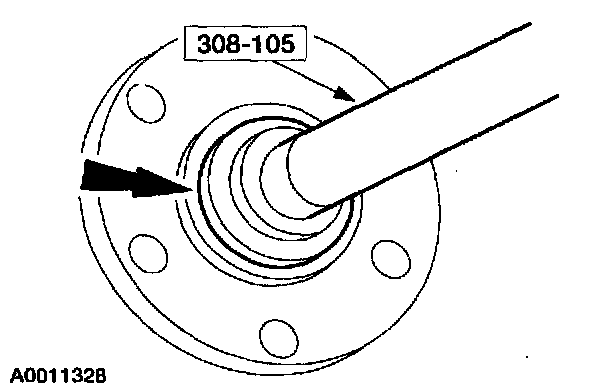

Using a soft-face hammer and the special tool, install the new transmission input shaft pilot bearing.
