Stabilizer Bushing: Service and Repair

Stabilizer Bar Bushing

Removal and Installation





1. NOTE: Both the left and right side stabilizer bar bushings are removed and installed the same way. Only the left side is shown.

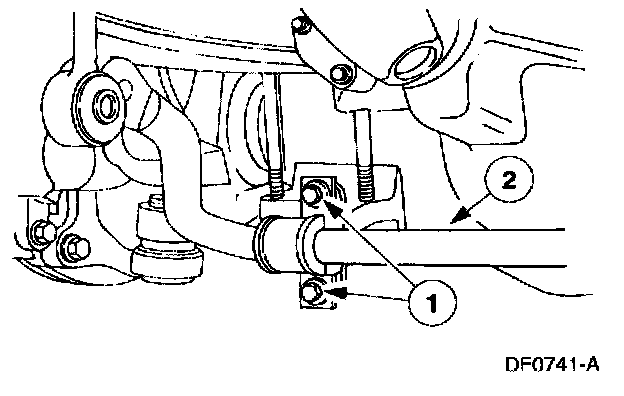

Disconnect the stabilizer bar from the bracket.
1. Remove the bolts.

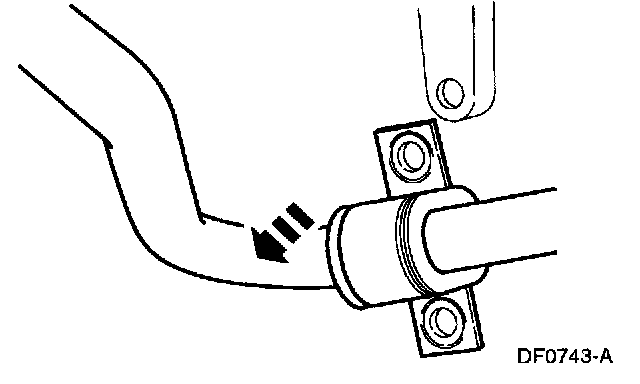

2. Pull the stabilizer bar away from the bracket.





2. Remove the bracket.

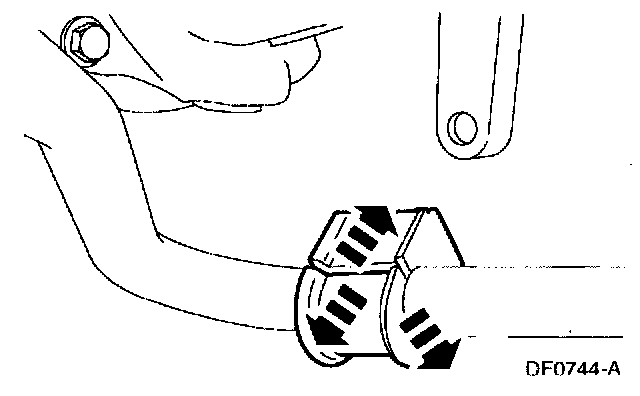

3. Remove the bushing.

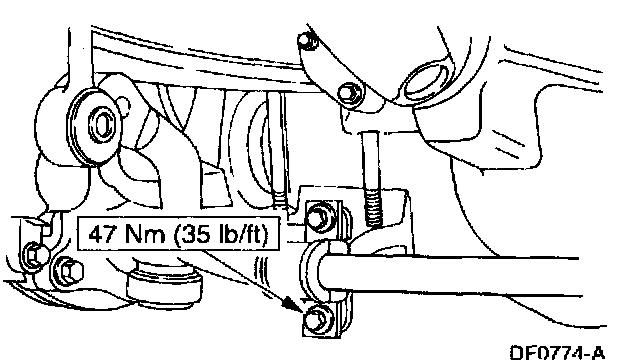

4. To install, reverse the removal procedure.
