Ball Joint, Upper

Ball Joint - Upper

Special Tool(s)

Special Tool(s):

Removal

1. Remove the wheel knuckle.

2. Place the wheel knuckle into a suitable vise.

3. NOTE: Always remove the lower ball joint first.

Remove the lower ball Joint.

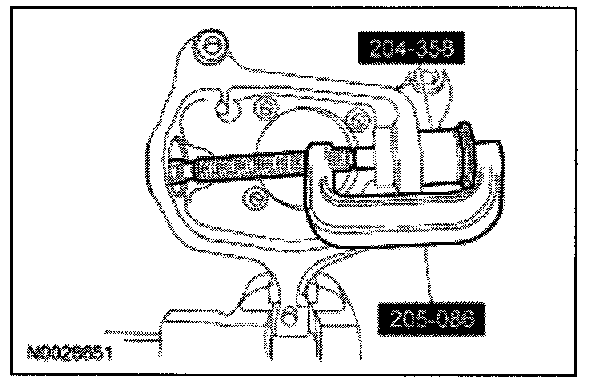

4. Using the special tools, remove the ball joint.






Installation
1. Clean the wheel knuckle ball Joint bores.

2. Using the special tools, install the ball joint.





3. Install the lower ball Joint.

4. Install the wheel knuckle.
