Ball Joint, Lower

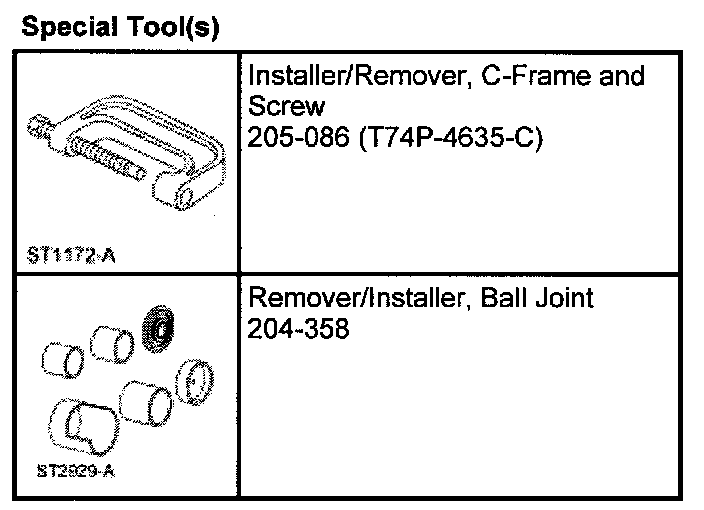

Special Tool(s)

Special Tool(s):

Ball Joint - Lower

Removal

1. Remove the wheel knuckle.

2. Place the wheel knuckle into a suitable vise.

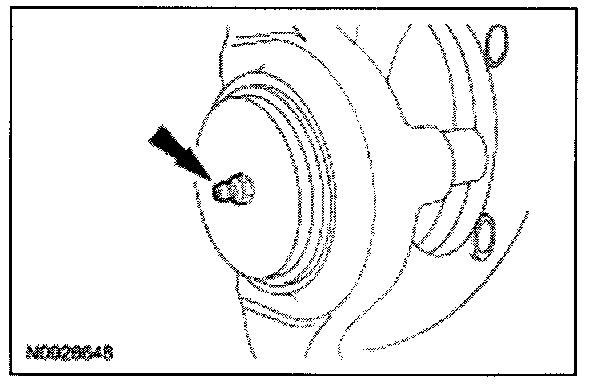

3. If equipped, remove the ball joint grease fitting.

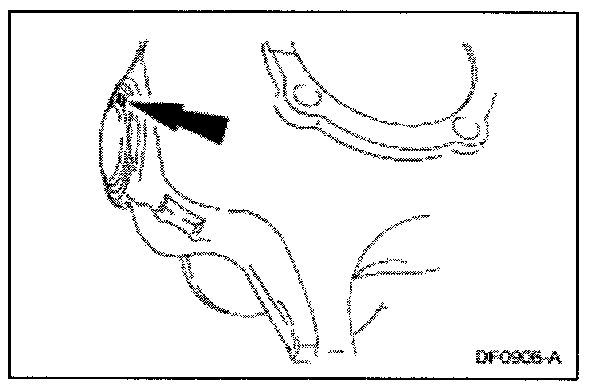

4. Remove the snap ring.

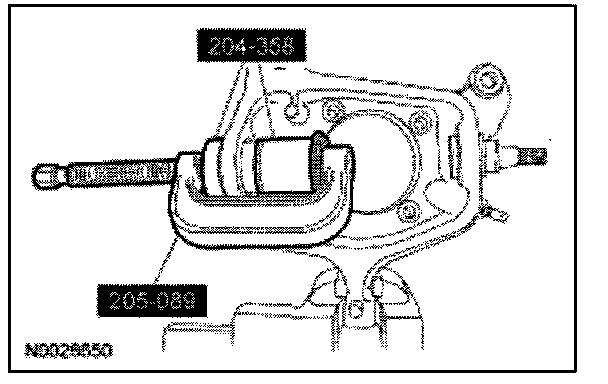

5. Using the special tools, remove the ball joint.






Installation

1. Clean the wheel knuckle ball joint bore.

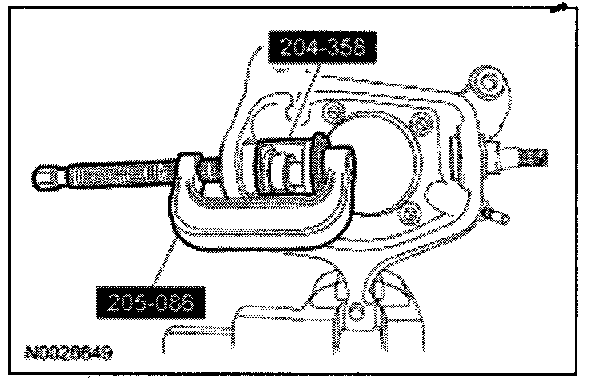

2. Using the special tools, install the ball joint.






3. Install the snap ring.






4. Caution:Do not over tighten the ball joint grease fitting.

If removed, install ball joint grease fitting.

5. Install the wheel knuckle.
