Home
>>
Ford Truck
>>
2002
>>
Excursion 4WD V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Take-Off
Power Take-Off

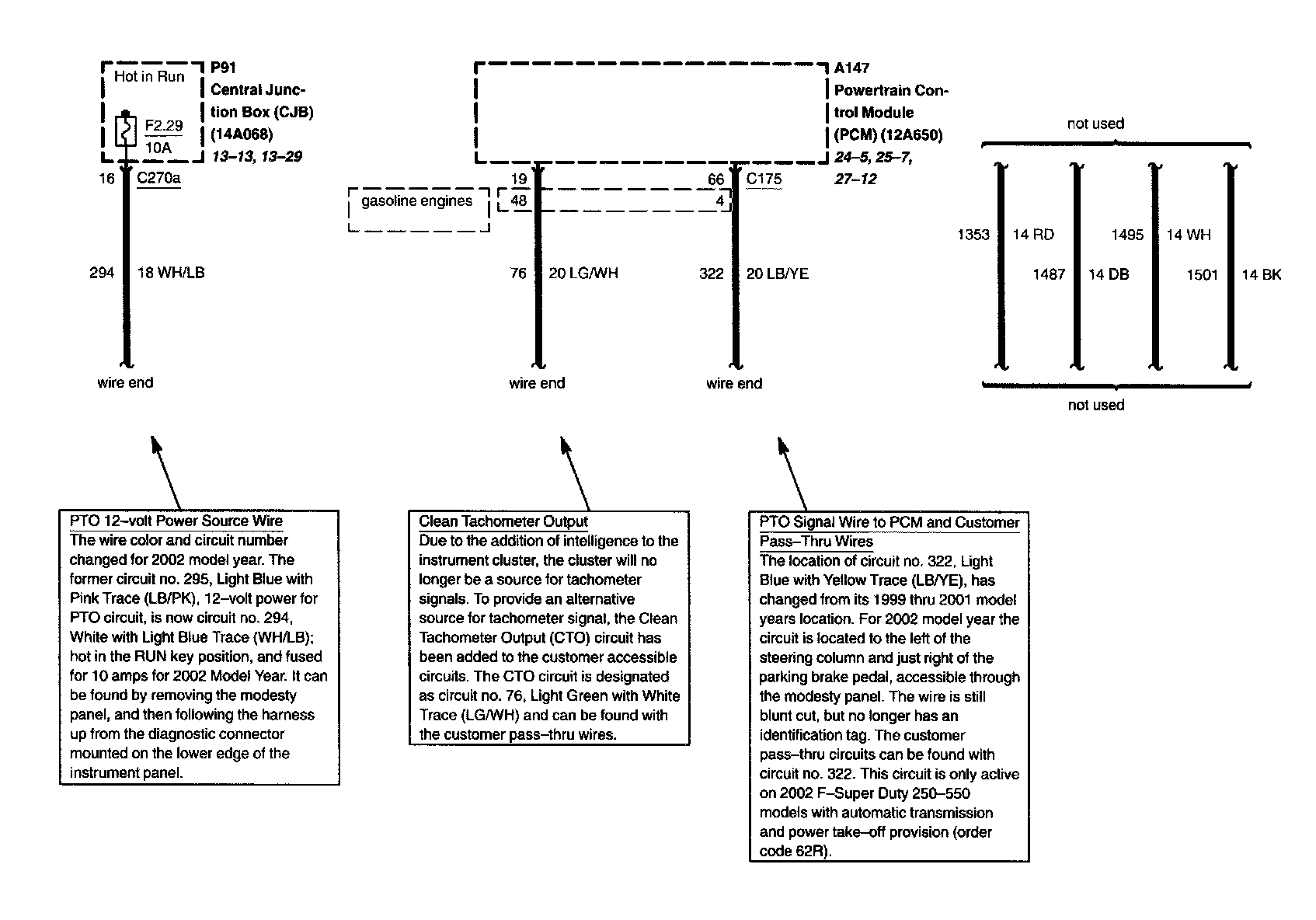

Diagram 140-1:
