Ford Truck
>>
2002
>>
Excursion 4WD V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
General Module
General Module

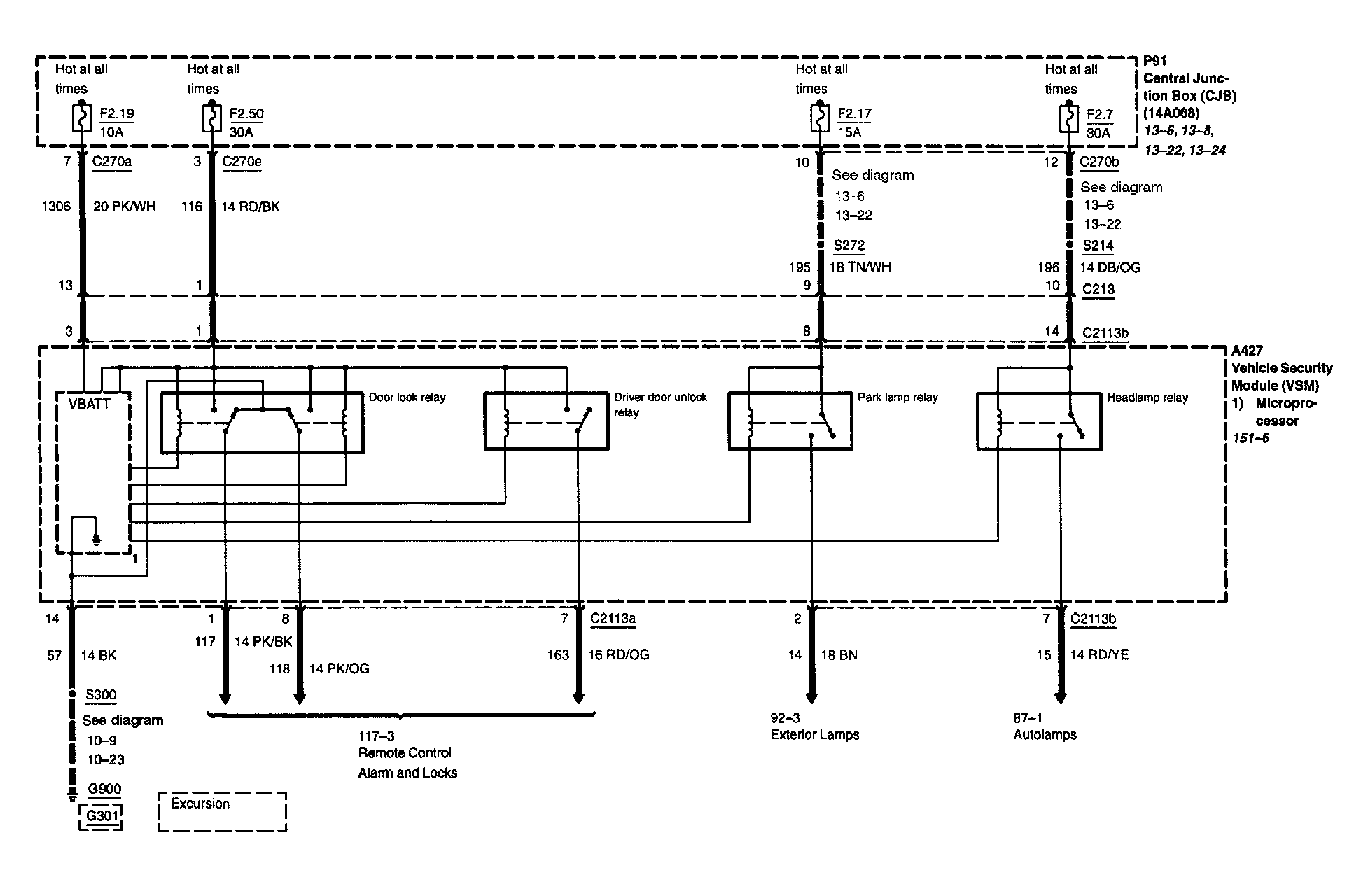

Diagram 59-1:
Diagram 59-2:
