Torque Rod: Service and Repair
Track Bar - F-450, F-550Removal
1. CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. They must be replaced with the same part number or an equivalent part if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during re-assembly to ensure proper retention of these parts.
Raise and support the vehicle.
2. NOTE: To prevent the front suspension from shifting when the trackbar is removed, the front suspension must be supporting the vehicle weight.
Load the front suspension with the vehicle weight.
1. Position the jack stand under the front axle assembly.
2. Lower the vehicle until the front suspension is supporting the vehicle weight.

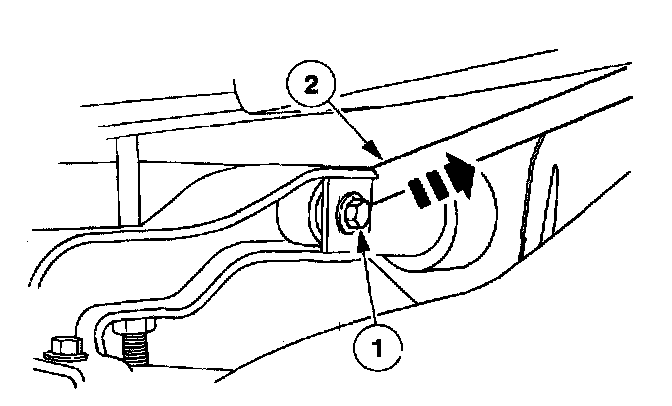

3. Disconnect the trackbar from the upper mounting bucket.
1. Remove the nut and bolt.
2. Remove the trackbar from the bracket.

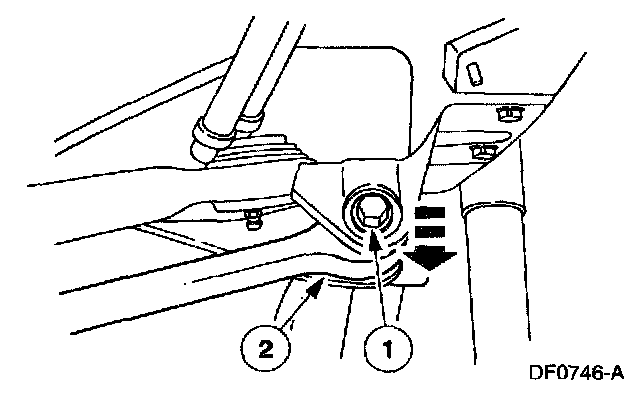

4. Remove the trackbar from the lower mounting bracket.
1. Remove the nut and bolt.
2. Remove the trackbar.
Installation

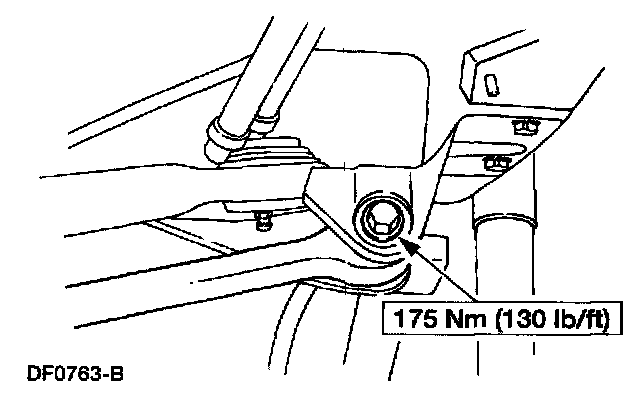

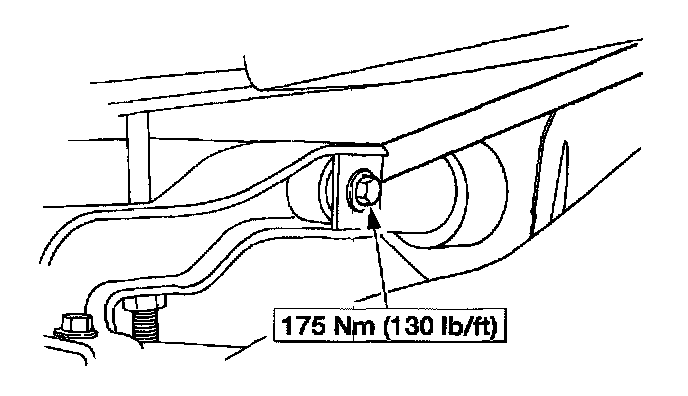

1. Using new fasteners, follow the removal procedure in reverse order.
