Exhaust Manifold RH

Removal and Installation

1. WARNING: The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the RH kick panel area. Failure to do so may result in unexpected inflation or deflation of the air springs which may result in shifting of the vehicle during these operations.

Raise and support the vehicle.
2. On 4x4 vehicles, remove the front wheel opening moulding.
3. Remove the front fender splash shield.





4. Remove the three way catalytic converter to exhaust manifold nuts.

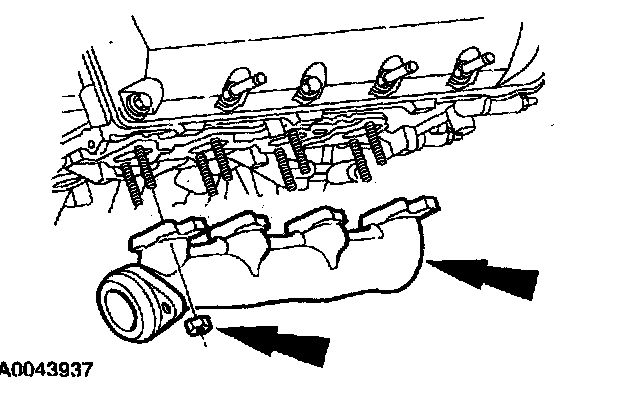

5. Remove the eight nuts and the exhaust manifold.

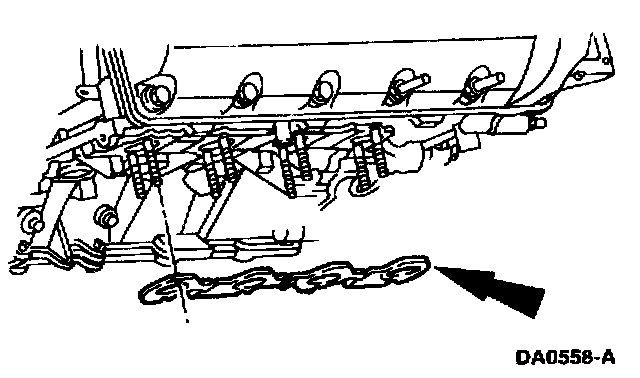

6. Remove and discard the exhaust manifold gasket.
7. Clean and inspect the exhaust manifold.

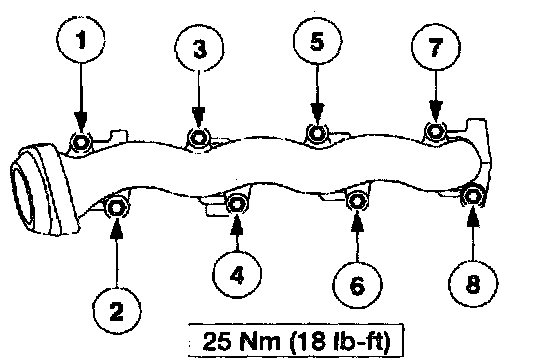

Exhaust Manifold Sequence:

8. To install, reverse the removal procedure.
^ Tighten the exhaust manifold nuts in the sequence shown.
