LH

Exhaust Manifold LH

Removal and Installation

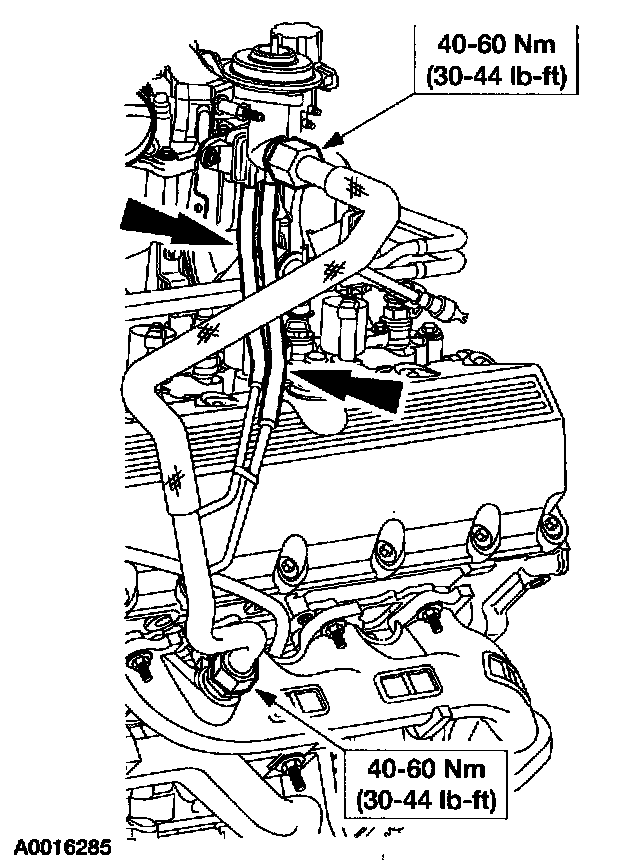

1. If equipped, remove the exhaust manifold to exhaust gas recirculation (EGR) valve tube.
2. Raise and support the vehicle.
3. On 4x4 vehicles, remove the front wheel opening moulding.
4. Remove the front fender splash shield.

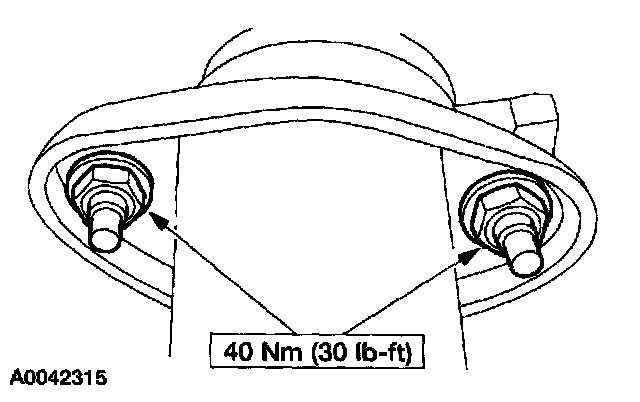

5. Remove the nuts.

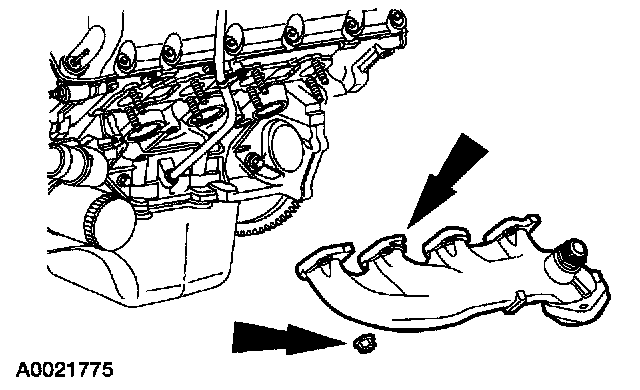

6. Remove the nuts and the exhaust manifold.

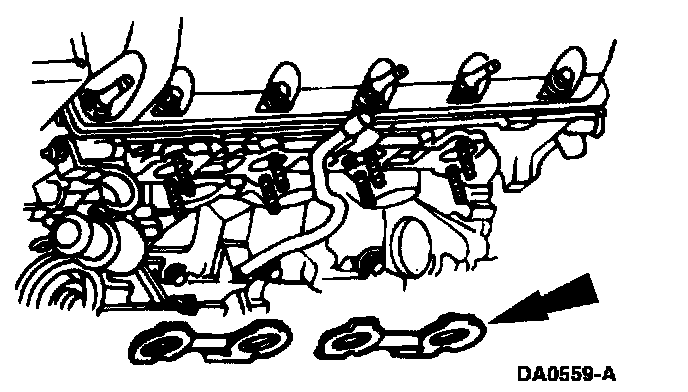

7. Remove the exhaust manifold gasket.
8. Clean and inspect the exhaust manifold.





9. To install, reverse the removal procedure.

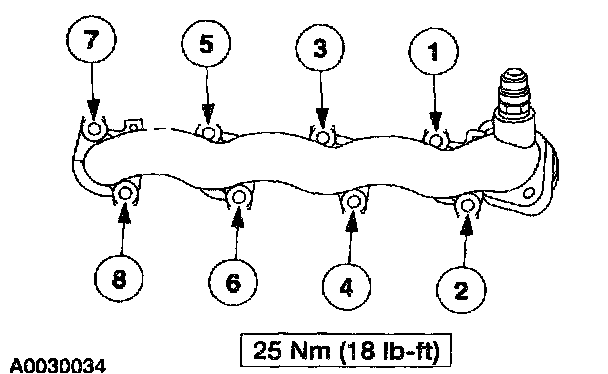

^ Tighten the exhaust manifold nuts in the sequence shown.
