RH
Valve Cover RHRemoval
1. Disconnect the battery ground cable.

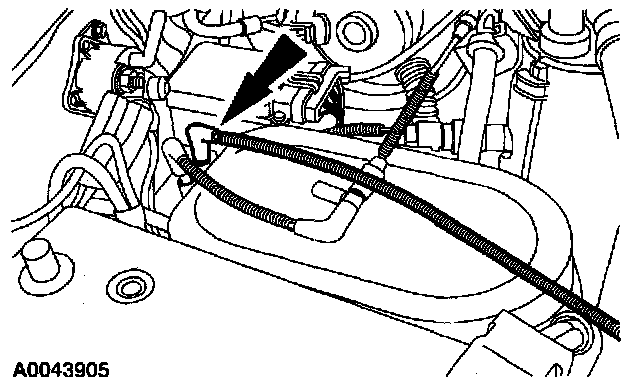

2. Disconnect the vacuum canister vacuum hose and position it aside.

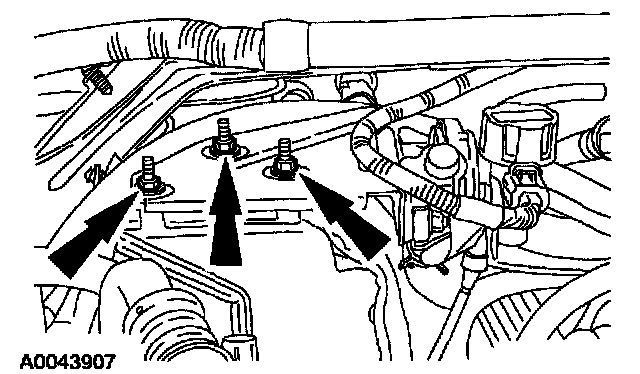

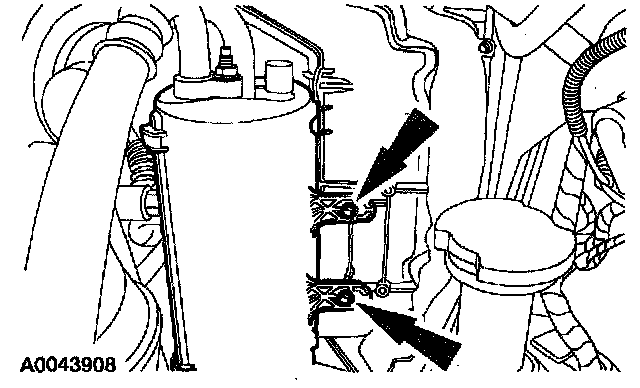

3. Remove the nuts. Secure the evaporative emission canister purge valve, bracket and heater water hose out of the way.

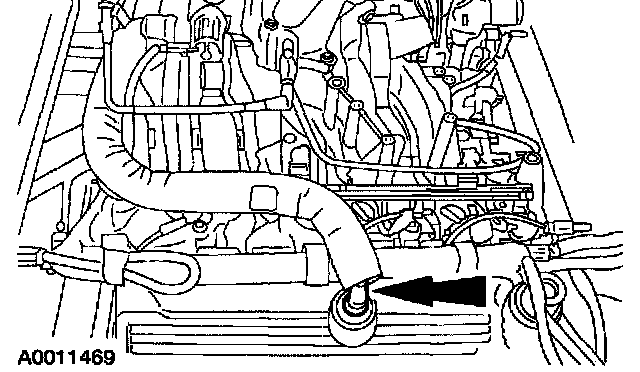

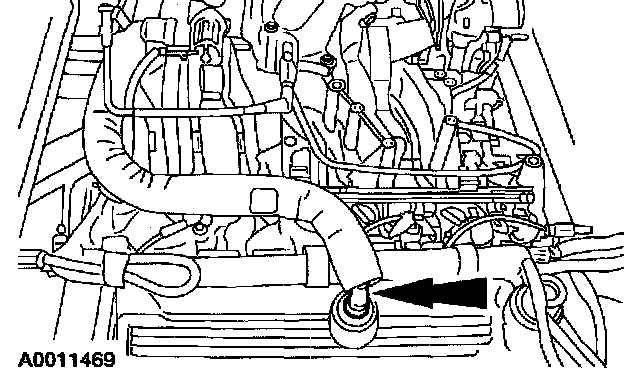

4. Disconnect the positive crankcase ventilation tube from the valve cover.
5. Remove the three suction accumulator bracket screws.
6. Remove the 11 evaporator core cover screws and remove the evaporator core cover.

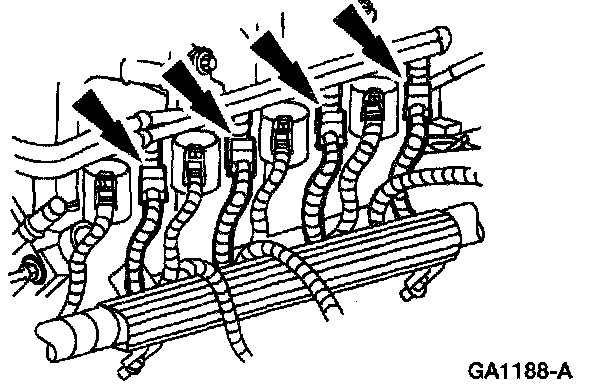

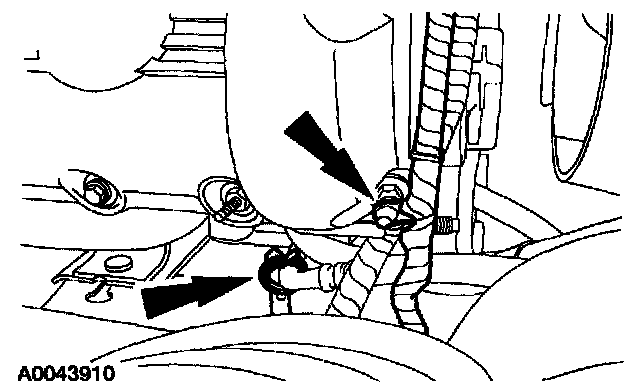

7. Disconnect the RH ignition coil electrical connectors.

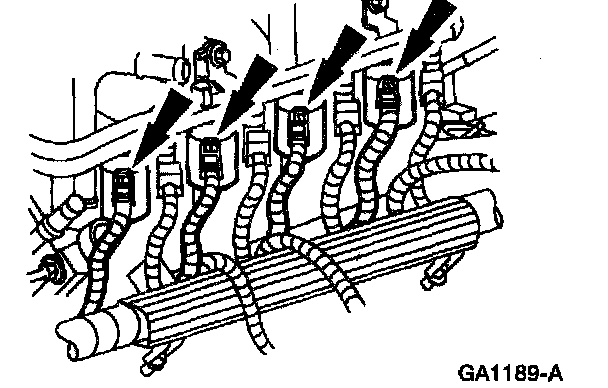

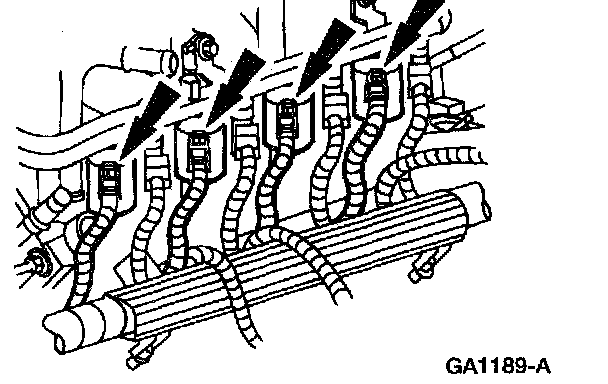

8. Disconnect the RH fuel injector electrical connectors.

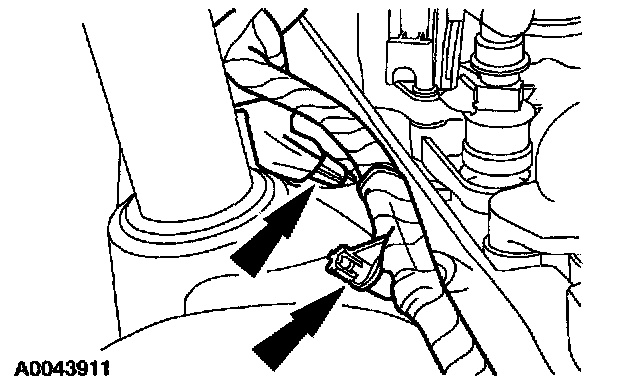

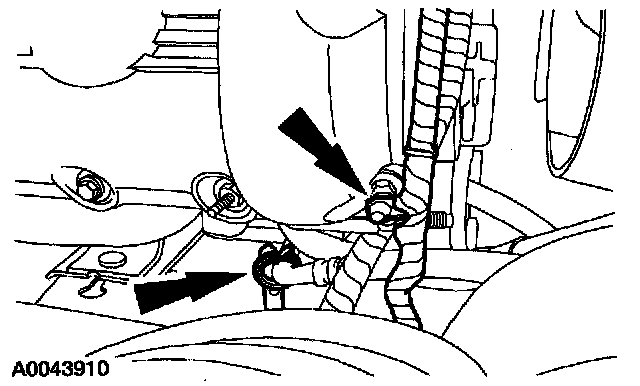

9. Release the harness routing clips from the valve cover stud and the A/C compressor to condenser hose.
10. Lift the fuel charging wiring off the valve cover studs and position the harness aside.

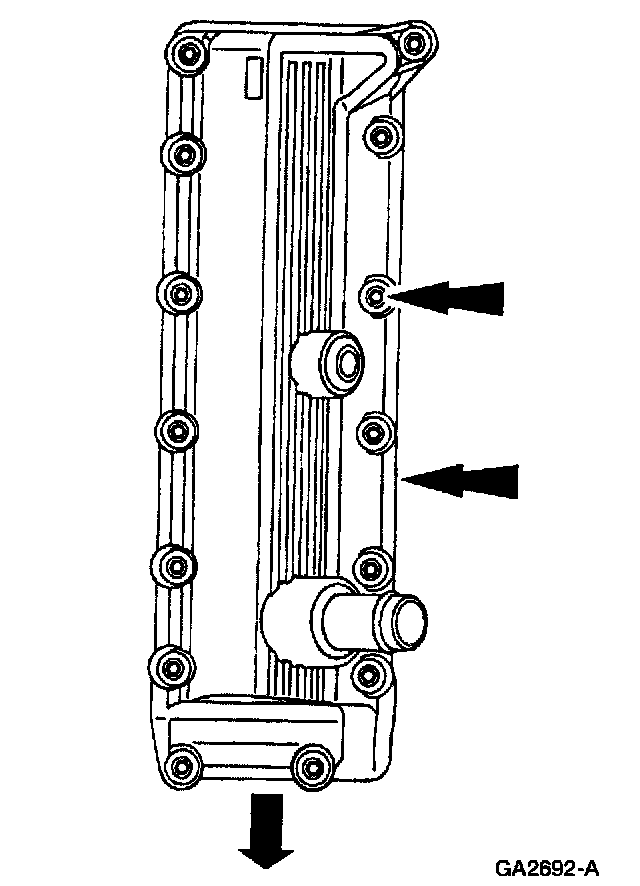

11. NOTE: The bolts are part of the valve cover and should not be removed.
Fully loosen the bolts.

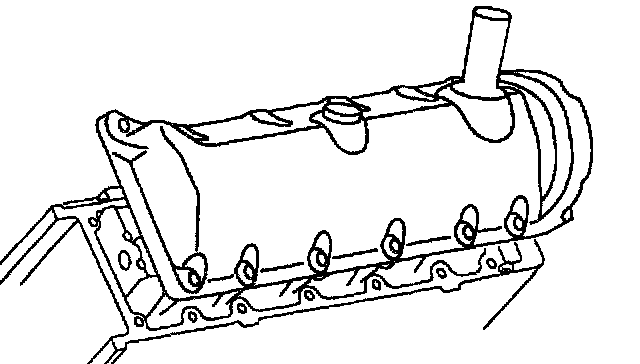

12. Remove the RH valve cover.
13. CAUTION: Do not use metal scrapers, wire brushes, power,abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
Inspect the valve cover gasket and clean the mating surface of the cylinder head.
Installation
1. NOTE: If not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.
Apply a bead of silicone gasket and sealant in two places where the engine front cover meets the cylinder head.
2. Position the valve cover and the valve cover gasket on the cylinder head.
3. Tighten the bolts in the sequence shown.
4. Position the fuel charging wiring onto the valve cover studs.

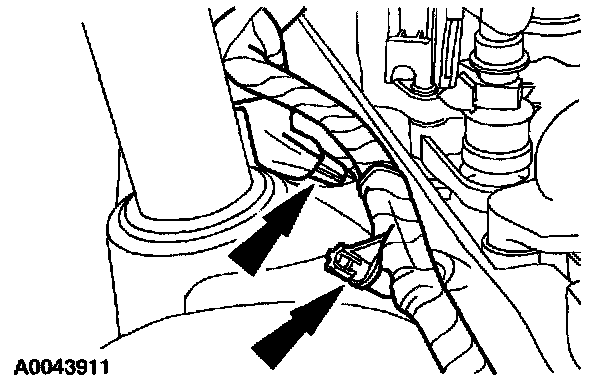

5. Attach the harness routing clips to the valve cover stud and the A/C compressor to condenser hose.
6. Connect the RH fuel. injector electrical connectors.

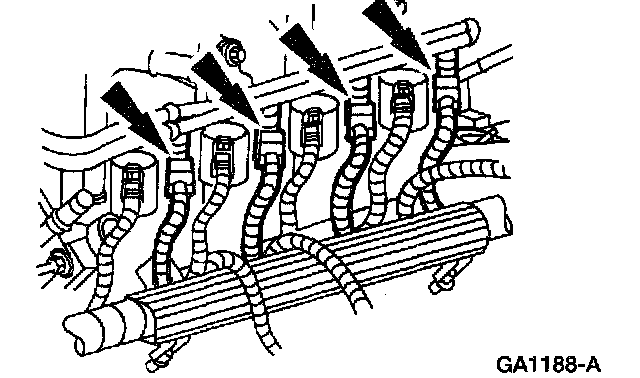

7. Connect the RH ignition coil electrical connectors.
8. Position the evaporator core cover and install the 11 screws.
9. Install the three suction accumulator bracket screws.
10. Connect the positive crankcase ventilation tube to the valve cover.

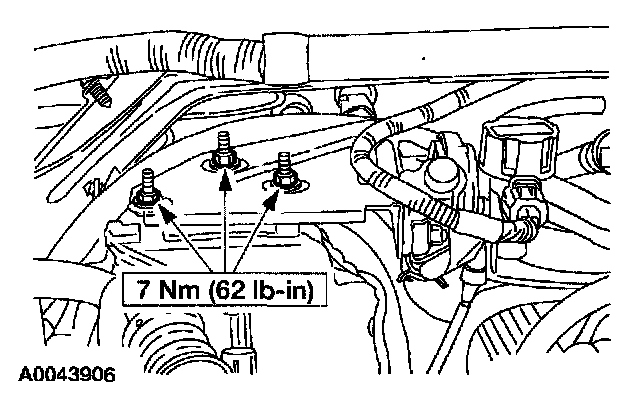

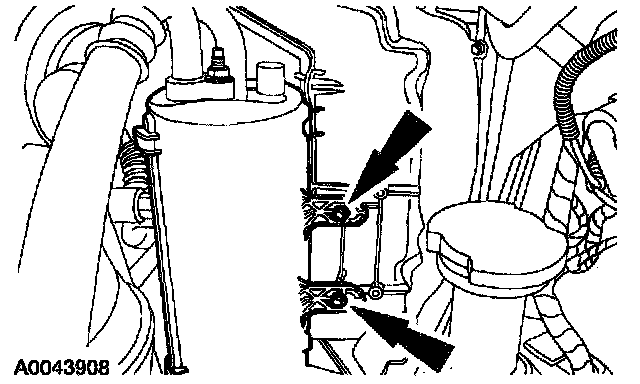

11. Position the heater water hose, evaporative emission canister purge valve and bracket, and install the nuts.
12. Connect the vacuum canister vacuum hose.
13. Connect the battery ground cable.
