Transmission Cooler: Description and Operation

Manual Transmission

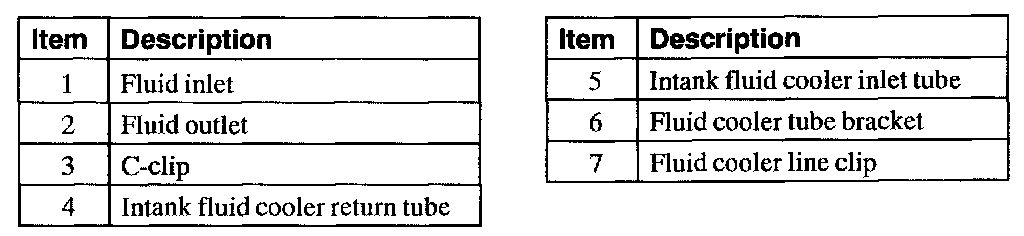

Item 1 - 7

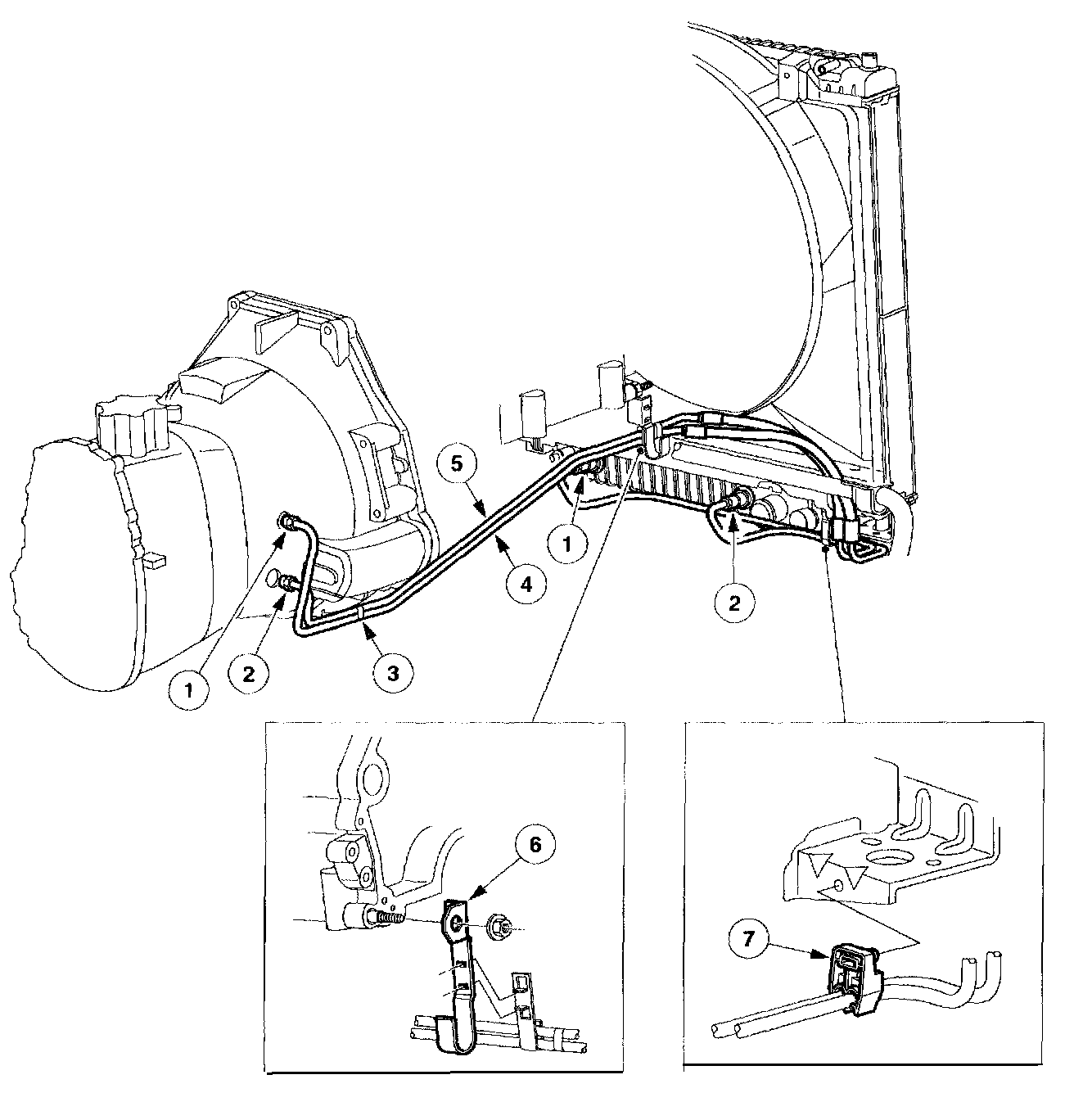

Manual Transmission Fluid Cooling System

The manual transmission fluid cooling system consists of:
- an intank fluid cooler inlet tube
- a non-repairable intank transmission fluid cooler
- an intank fluid cooler return tube
The transmission fluid flows from the transmission bottom fitting, to the intank transmission fluid cooler, and returns to the transmission top fitting.
For fluid cooler flow testing, refer to Transmission Fluid Cooler Flow Test-Manual Transmission.
