Power Steering Pump Pulley

Power Steering Pump Pulley - Pump CIII

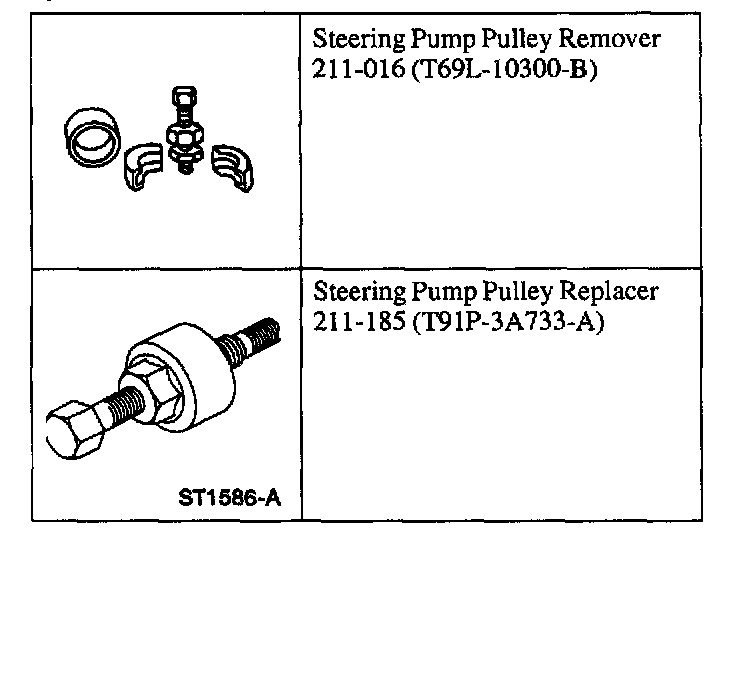

Special Tool(s):

Special Tool(s)

Removal
1. Remove the drive belt.
2. Raise the vehicle.

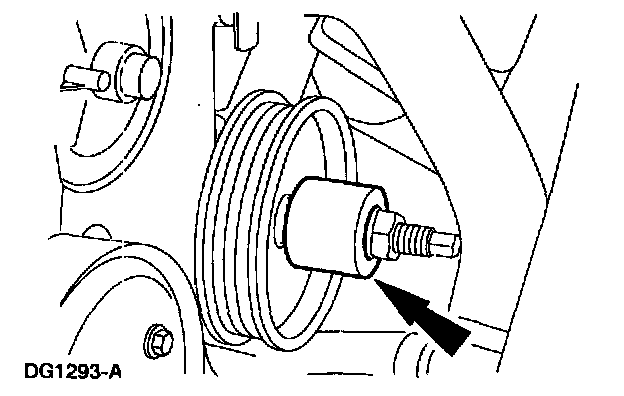

3. Remove the pulley using the Steering Pump Pulley Remover.

Installation

CAUTION: Replacement of the power steering pump pulley is necessary after being removed and installed two times.





1. Install the power steering pump pulley.
- Inspect the pulley for paint marks in the web area near the hub. If there are two paint marks, discard the pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area of the pulley near the hub.

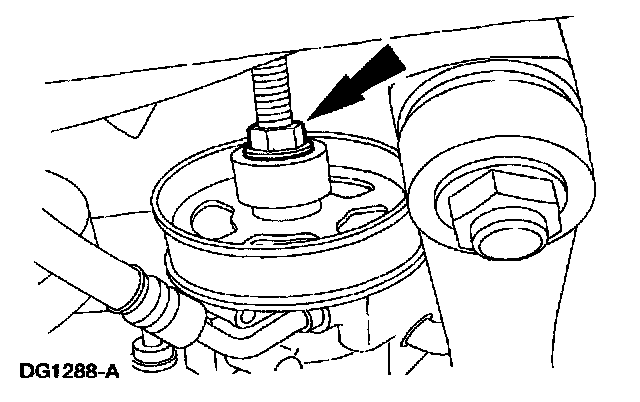

- Use the Power Steering Pump Pulley Replacer.
2. Install the drive belt.
