Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir

Removal and Installation
1. Remove the fluid from the reservoir using a suction gun.

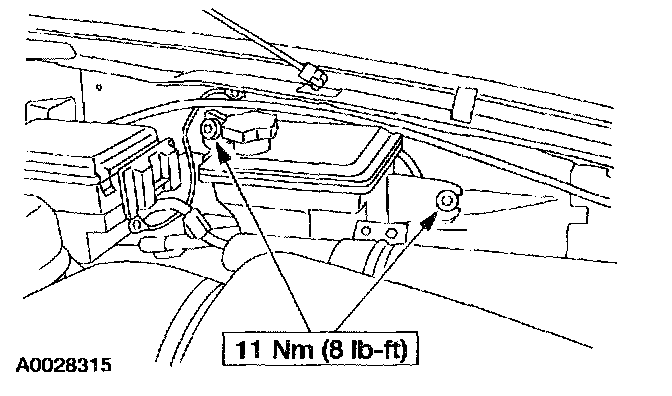

2. Remove the attaching screws.





3. Disconnect the hoses.
4. To install, reverse the removal procedure.
5. Fill and leak check the system.
