Power Steering Fluid Cooler: Service and Repair

Power Steering Fluid Cooler

Removal and Installation

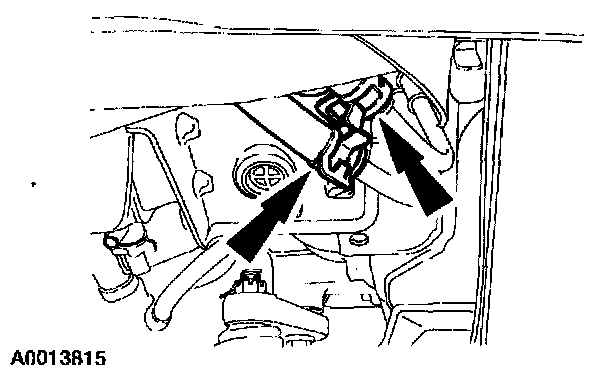

1. Unclamp and disconnect the hoses.
- Drain the fluid into a suitable container.

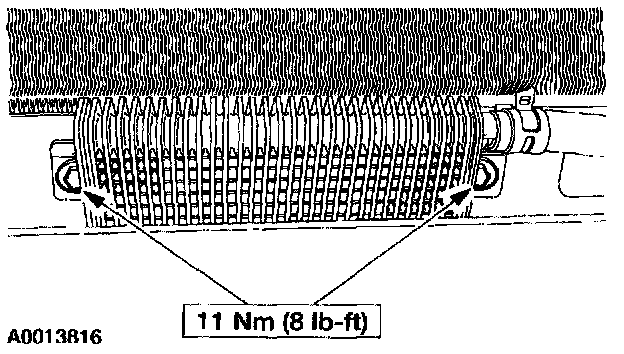

2. Remove the bolts and the cooler.
3. To install, reverse the removal procedure.
- If a new cooler is being installed, install the hoses on the new cooler.
