Front Captain's Chair

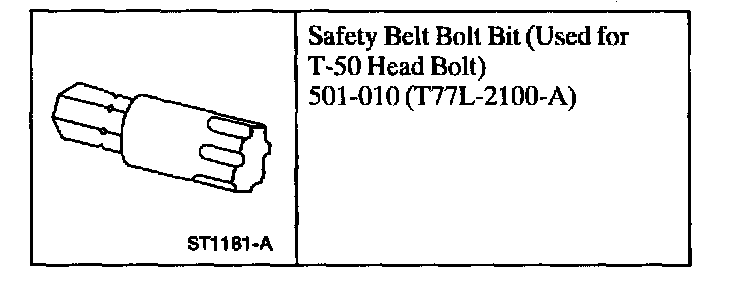

Safety Belt Bolt Bit:

SPECIAL TOOL(S)

REMOVAL
1. Remove the floor console.

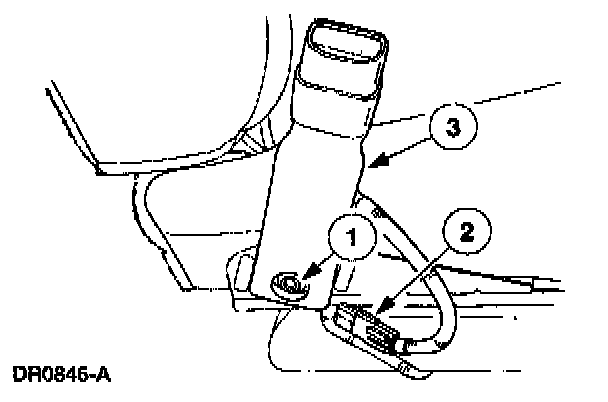

2. Remove the safety belt buckle.
1 Use the Seat Belt Bolt Bit to remove the safety belt buckle bolt.
2 Disconnect the safety belt warning indicator switch connector.
3 Remove the safety belt buckle.

NOTE:
^ Driver side shown, passenger side similar.
^ Passenger side safety belt buckle is not equipped with a safety belt warning indicator switch.

INSTALLATION







1. To install, reverse the removal procedure.

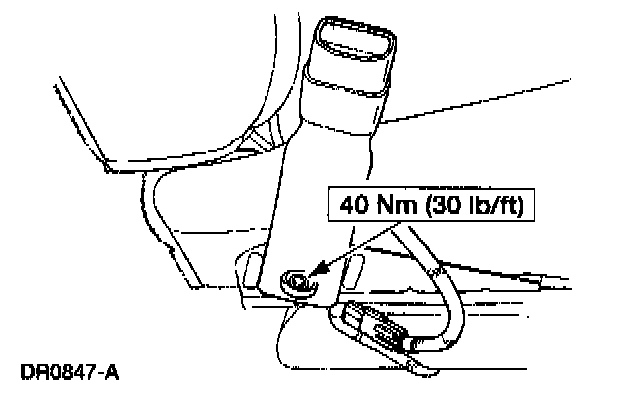

NOTE: Make sure to tighten bolts to specification.

2. Check the restraint system for correct operation.
