40/20/40 Seat, Driver and Passenger
REMOVALAll vehicles
1. Remove the affected seat.
Driver safety belt buckle

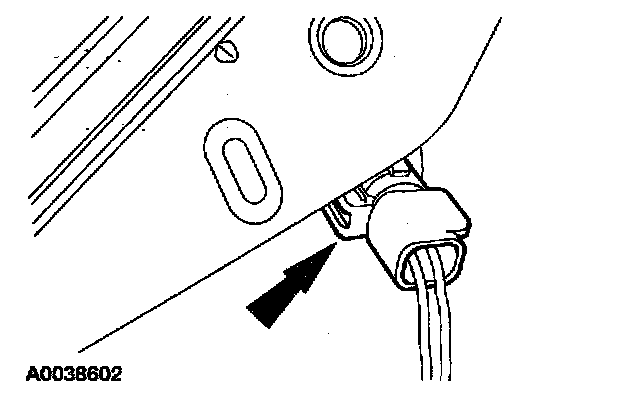

2. Disconnect the safety belt warning switch electrical connector.
^ Remove the pin-type retainer from the safety belt warning switch electrical connector.
All vehicles

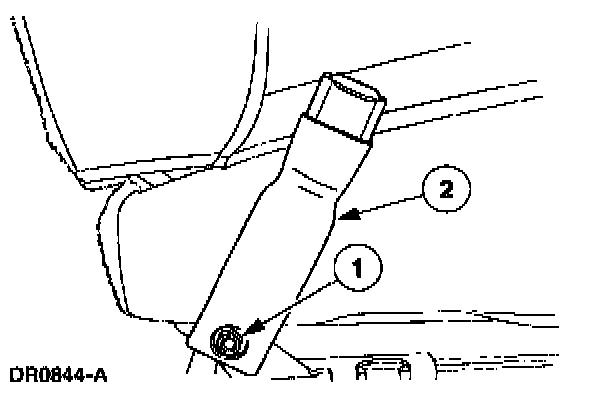

3. Remove the safety belt buckle.
1 Remove the safety belt buckle nut.
2 Remove the safety belt buckle.
NOTE: Driver side shown, passenger side similar.
Driver safety belt buckle

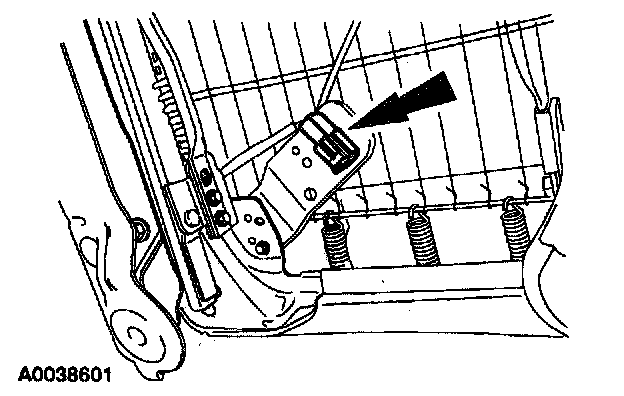

4. Position the electrical connector as shown and pull it through the seat opening.
INSTALLATION
1. To install, reverse the removal procedure.

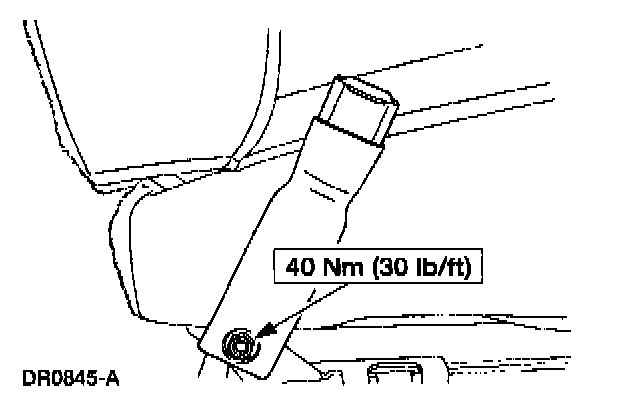

NOTE: Make sure to tighten nuts to specification.
2. Check the active restraint system for correct operation.
