Home
>>
Ford Truck
>>
2002
>>
Excursion 2WD V10-6.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Marker Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

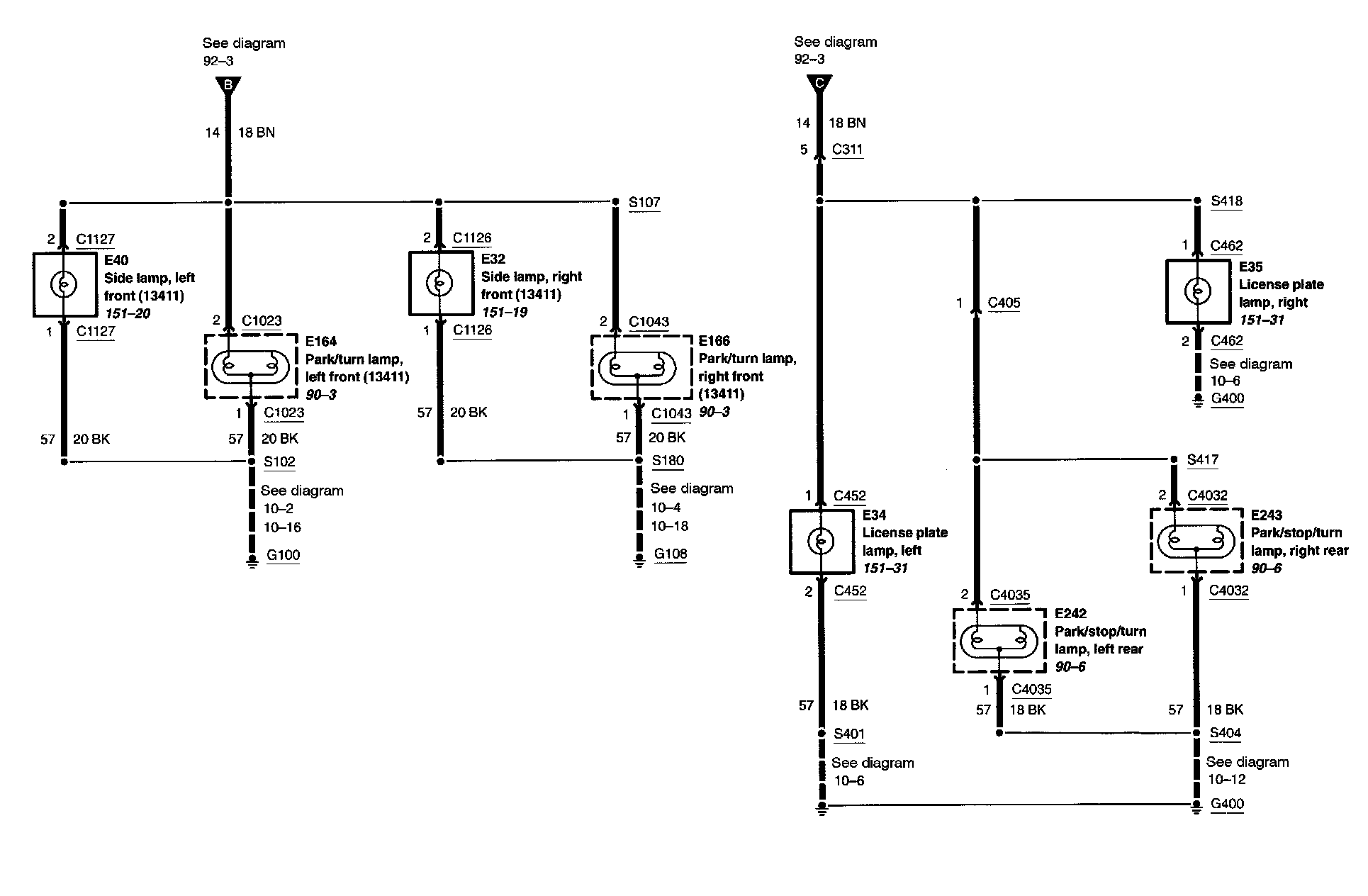

Diagram 92-2:

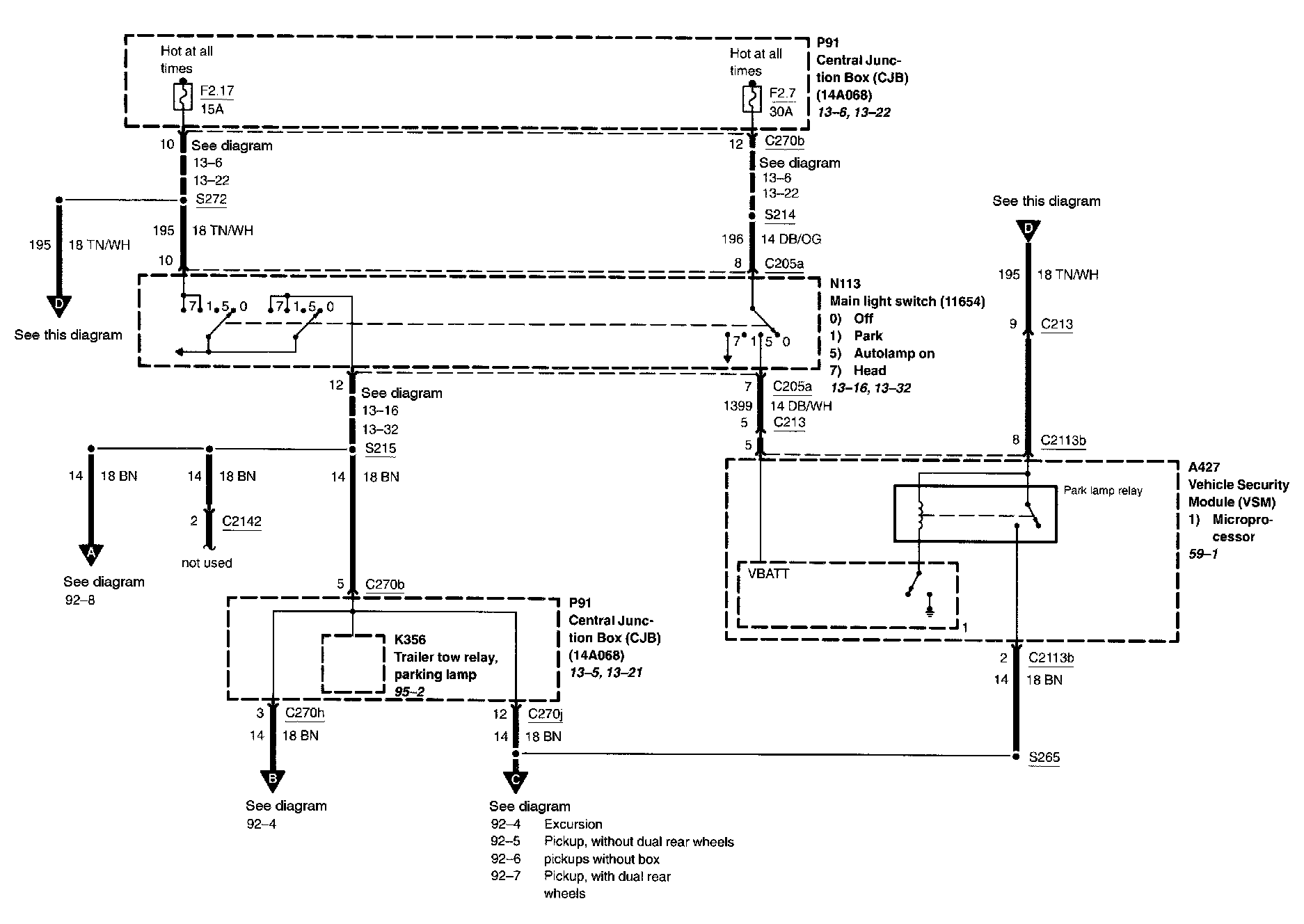

Diagram 92-3:

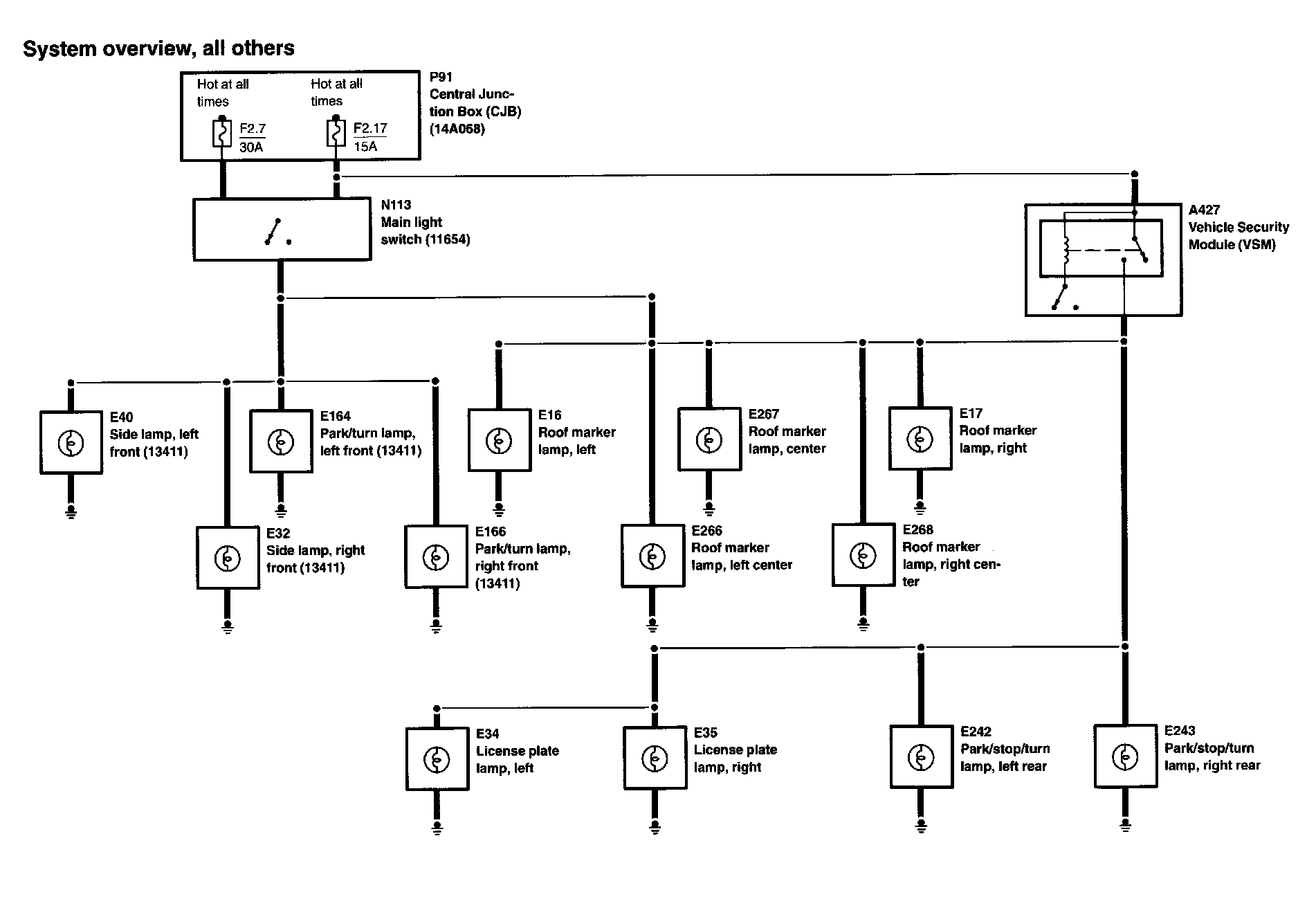

Diagram 92-4:
