Harmonic Balancer

Crankshaft Pulley





Special Tool(s)

Removal
1. Remove the engine cooling fan and fan shroud.
2. Remove the drive belt.
3. Raise the vehicle on a hoist.

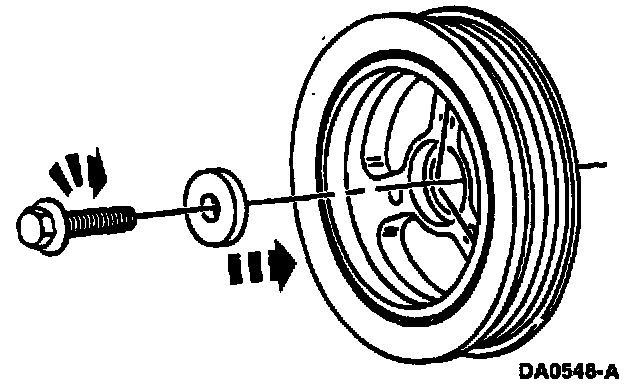

4. Remove the crankshaft pulley bolt.

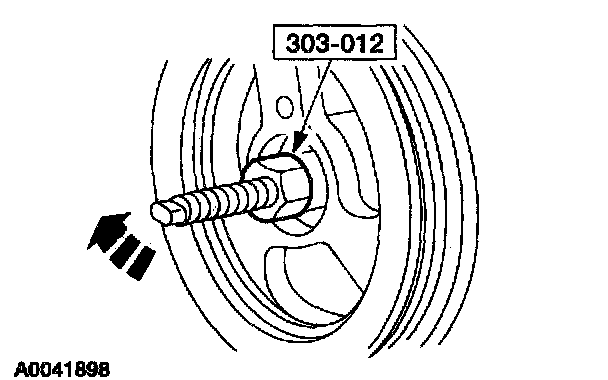

5. Using the special tool, remove the crankshaft pulley.

Installation





1. NOTE: If not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

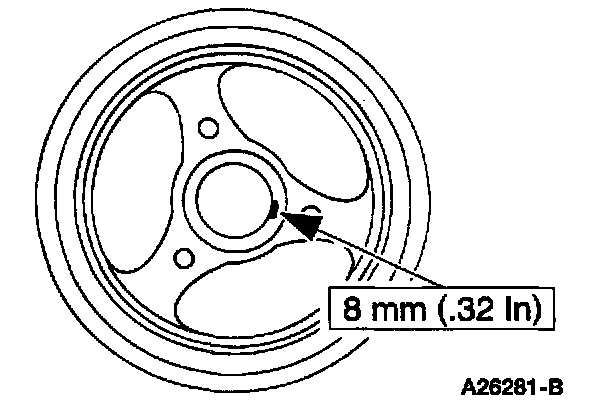

Apply silicone gasket and sealant to the Woodruff key slot in the crankshaft pulley.

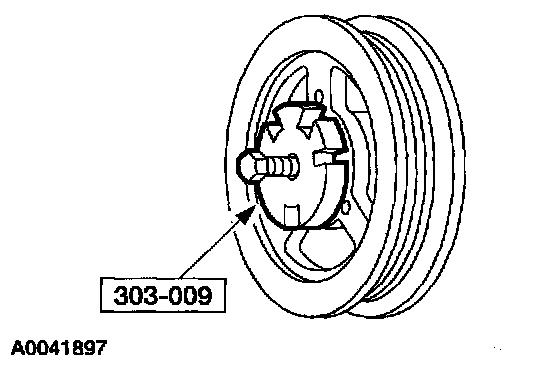

2. Use the special tool to install the crankshaft pulley.





3. Tighten the crankshaft pulley bolt in four stages.
^ Stage 1: Tighten to 90 Nm (66 ft. lbs.).
^ Stage 2: Loosen 360 degrees.
^ Stage 3: Tighten to 50 Nm (37 ft. lbs.).
^ Stage 4: Tighten an additional 90 degrees.
4. Lower the vehicle.
5. Install the engine cooling fan and the fan shroud.
