Home
>>
Ford Truck
>>
2002
>>
Excursion 2WD V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Automatic Transmission/Transaxle
>>
Coast Clutch Solenoide
Coast Clutch Solenoide

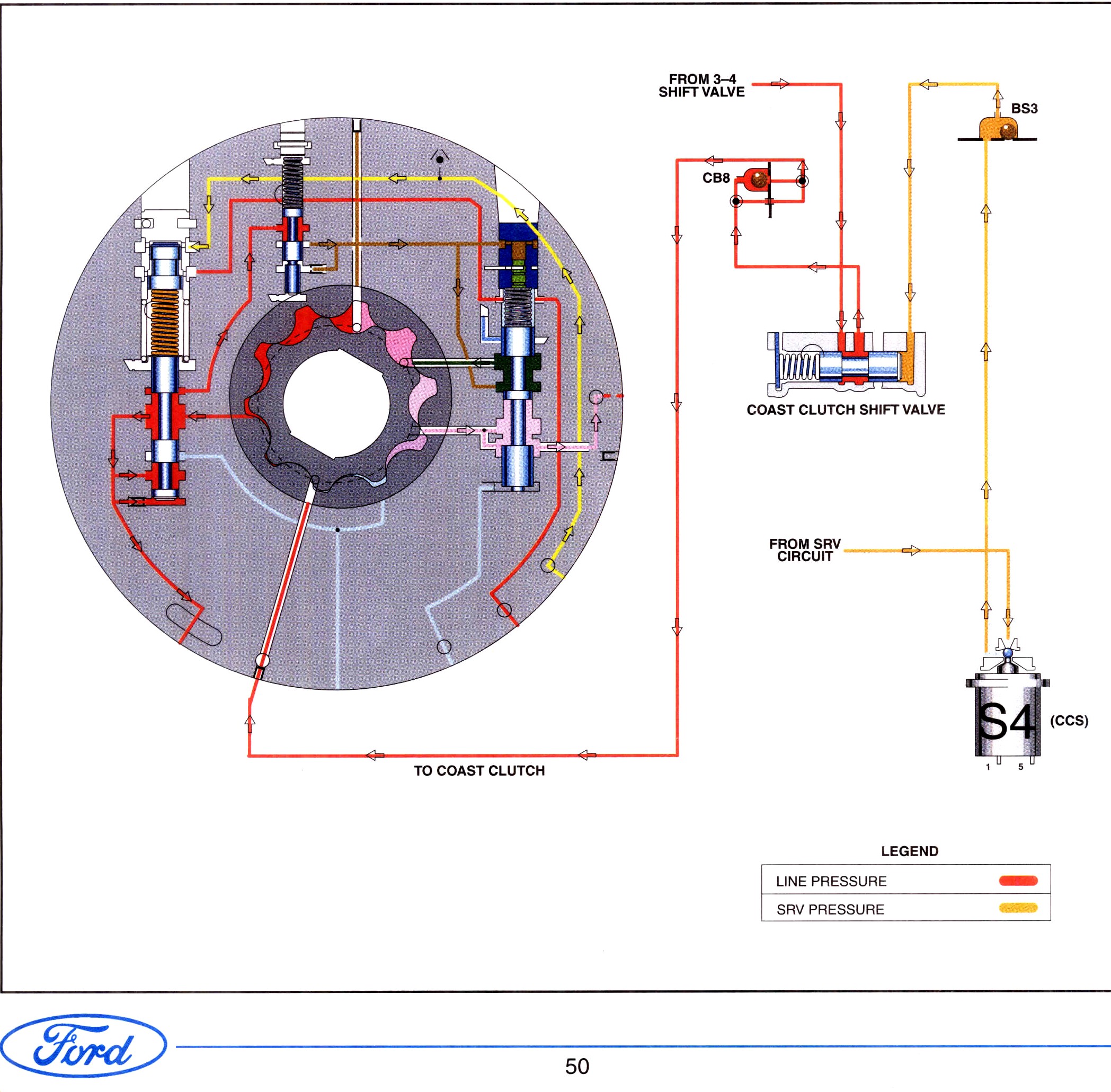

Coast Clutch
Solenoid
(CCS) Hydraulic Circuit
