Brake Master Cylinder: Adjustments

Push Rod Adjustment
1. Remove the brake master cylinder.





2. CAUTION: Do not apply the brake pedal with the master cylinder removed from the booster.

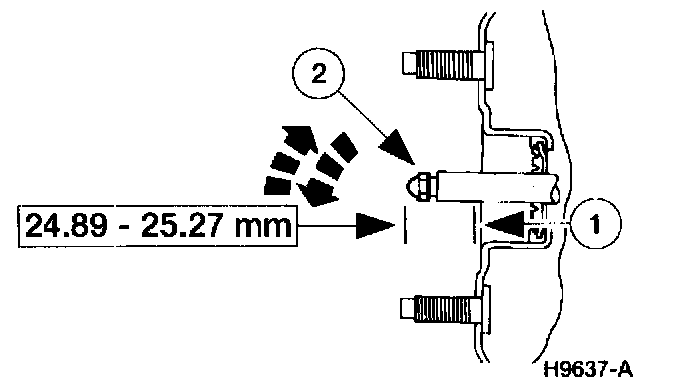

Adjust the power brake booster to brake master cylinder push rod, vacuum applied.
1 Measure the power brake booster to brake master cylinder push rod.
2 If necessary, adjust the screw within specification.
3. Install the brake master cylinder.
