Rear

REMOVAL
1. For regular and Crew Cab, remove the rear quarter trim panel. For SuperCab, remove the rear door trim panel.

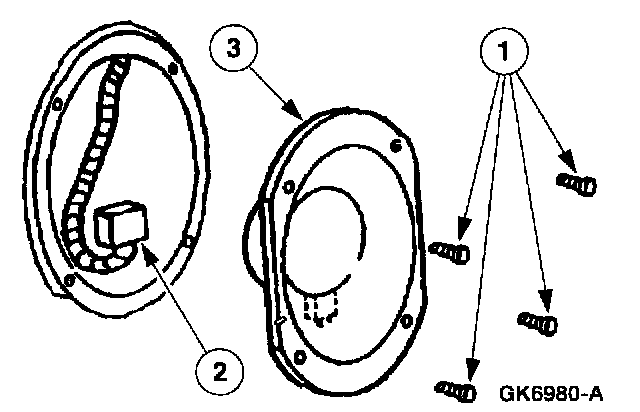

2. Remove the speaker.
1 Remove the screws.
2 Disconnect the electrical connector.
3 Remove the speaker.

INSTALLATION
1. To install, reverse the removal procedure.
