Alternator: Service and Repair

REMOVAL
1. Disconnect the battery cables.
2. Remove the drive belt.







3. Disconnect the electrical connectors.

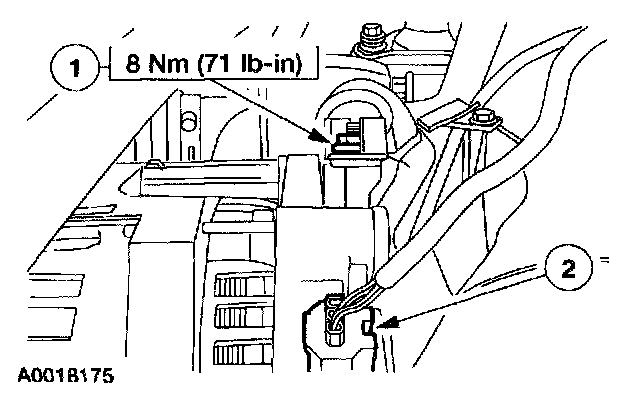

1 Remove the nut and disconnect the B+ cable.
2 Remove the connector.

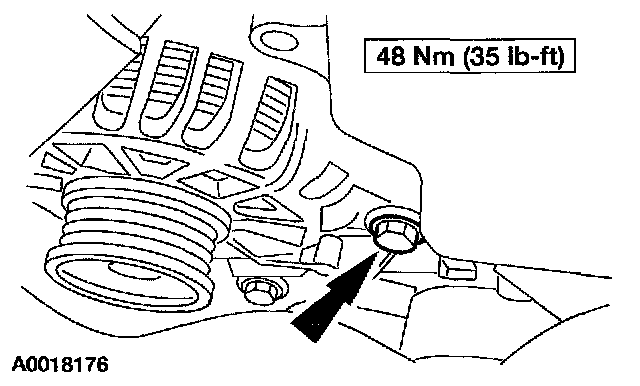

4. Remove the lower generator bolts.







5. Loosen the upper generator bolt from the engine but do not remove it from the generator.

NOTE: Insufficient clearance does not allow the bolt to be completely removed.

6. Move the generator to the rear of the vehicle, then lift up and out of the engine compartment.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Before reassembling, place the upper bolt into the generator.
