EGR Tube: Service and Repair

REMOVAL
1. Raise and support the vehicle.

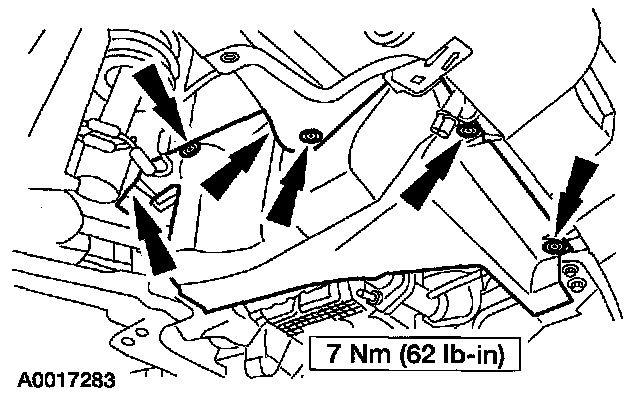

2. Remove the splash shield.

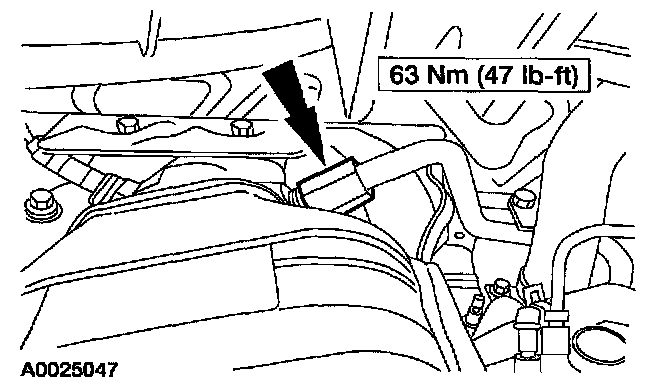

3. Disconnect the EGR tube fitting.
4. Lower the vehicle.

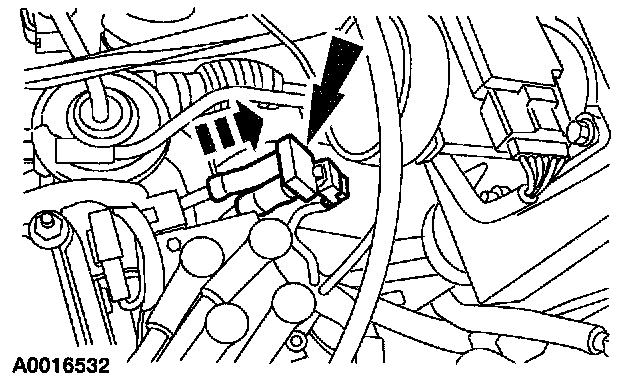

5. Remove the air cleaner outlet pipe.

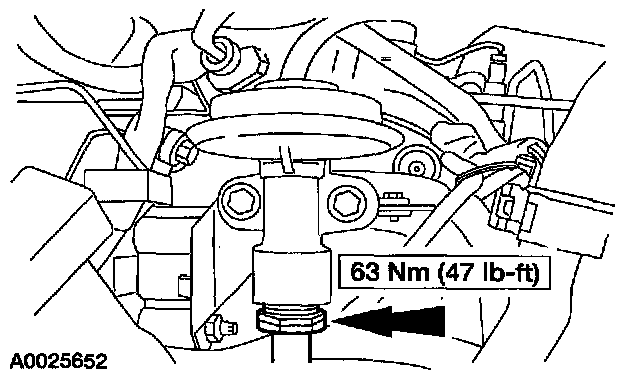

6. Disconnect the EGR tube from the EGR valve.

CAUTION: When the EGR tube is disconnected from the EGR valve a new EGR tube must be installed. The aluminum threads on the EGR valve must be inspected, and a new EGR valve installed if the threads are damaged.

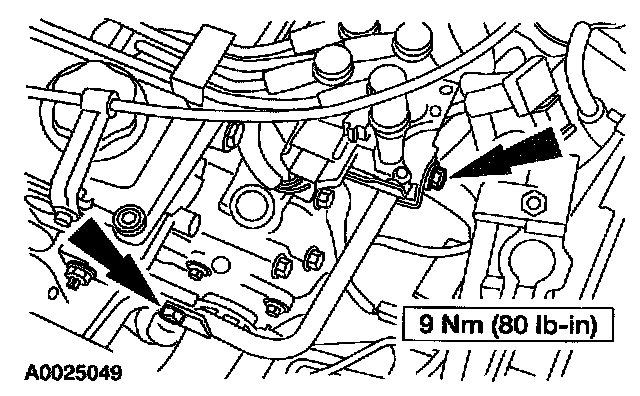

7. Remove the EGR tube bracket bolts.







8. Carefully remove the differential pressure feedback EGR sensor from the EGR tube.
9. Remove and discard the EGR tube.

CAUTION: The EGR tube must be discarded after removal.

INSTALLATION
1. To install, reverse the removal procedure.
