Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Remove the exhaust manifold.

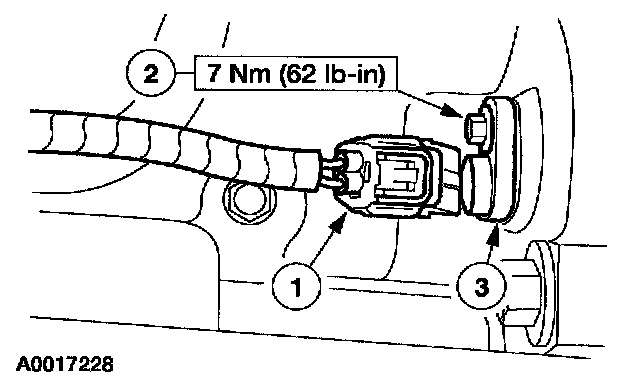

2. Remove the Crankshaft Position (CKP) sensor.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
