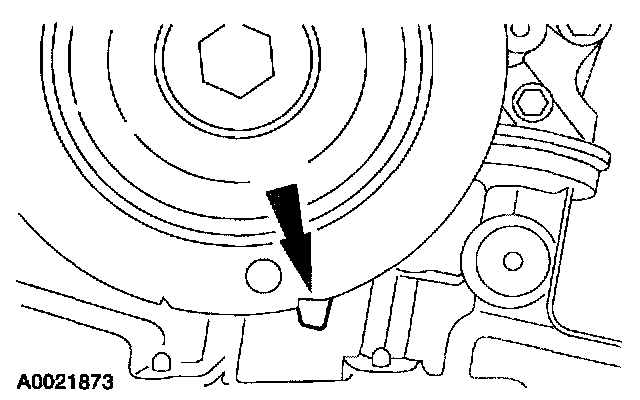

Timing Component Alignment Marks: Locations

NOTE: Make sure the correct (second) notch in the pulley is indexed to the lower cylinder block.

- Slide the crankshaft pulley onto the crankshaft and confirm the crankshaft position is at TDC (No. 1 cylinder) by rotating it clockwise against the alignment peg.
- Remove the crankshaft pulley.

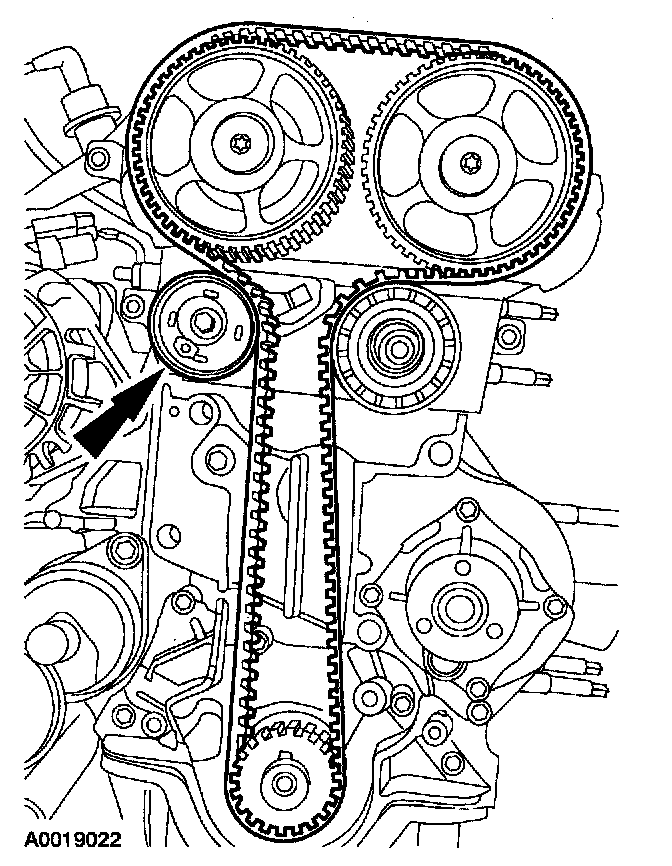

Install the timing belt onto the timing belt sprockets.
