Ford Truck
>>
2002
>>
Econoline E550 Super Duty V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Exploded Views
Exploded Views

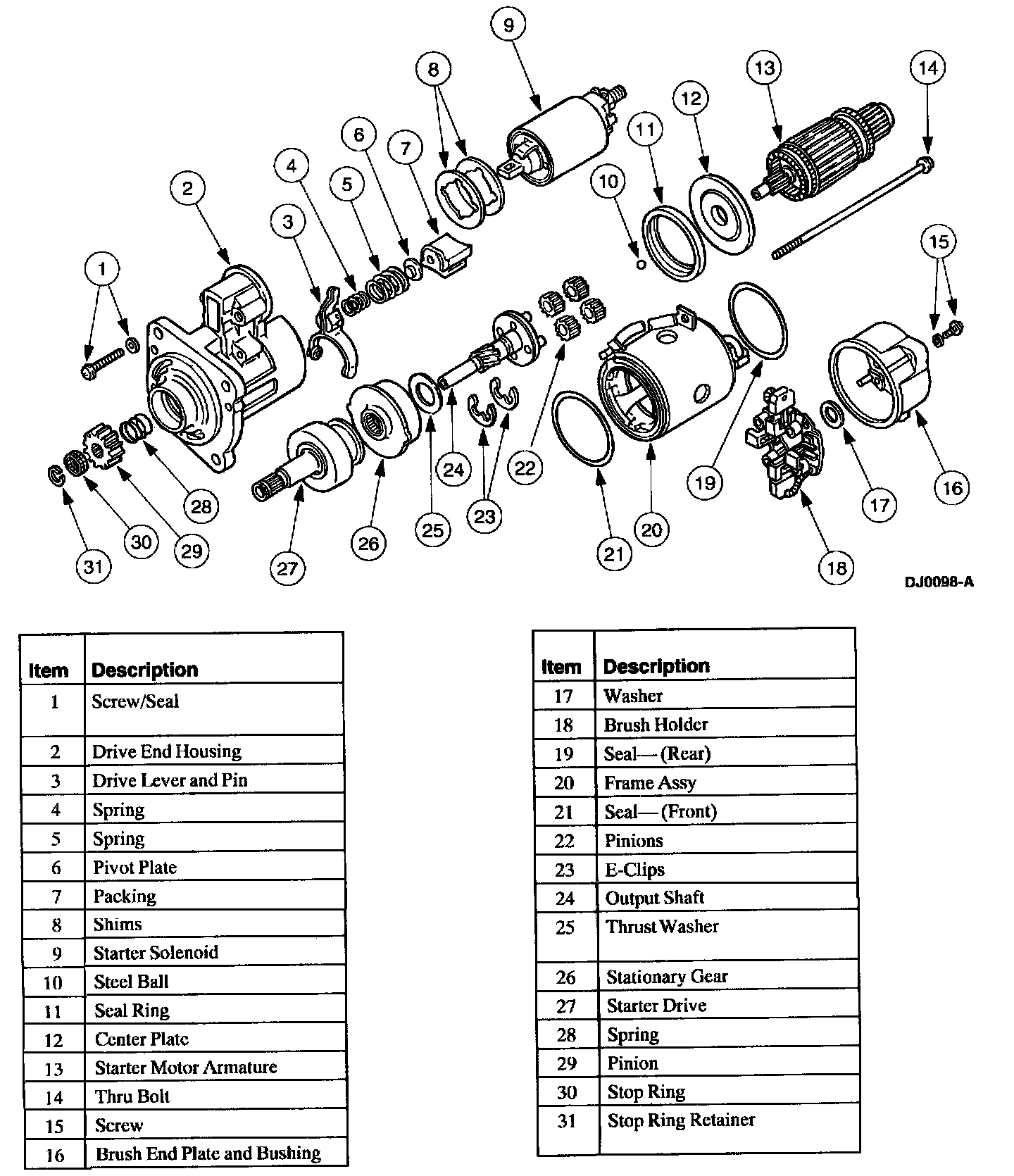

Starter Motor, Disassembled View:
