Power Window Switch: Testing and Inspection

Introduction To Component Testing:

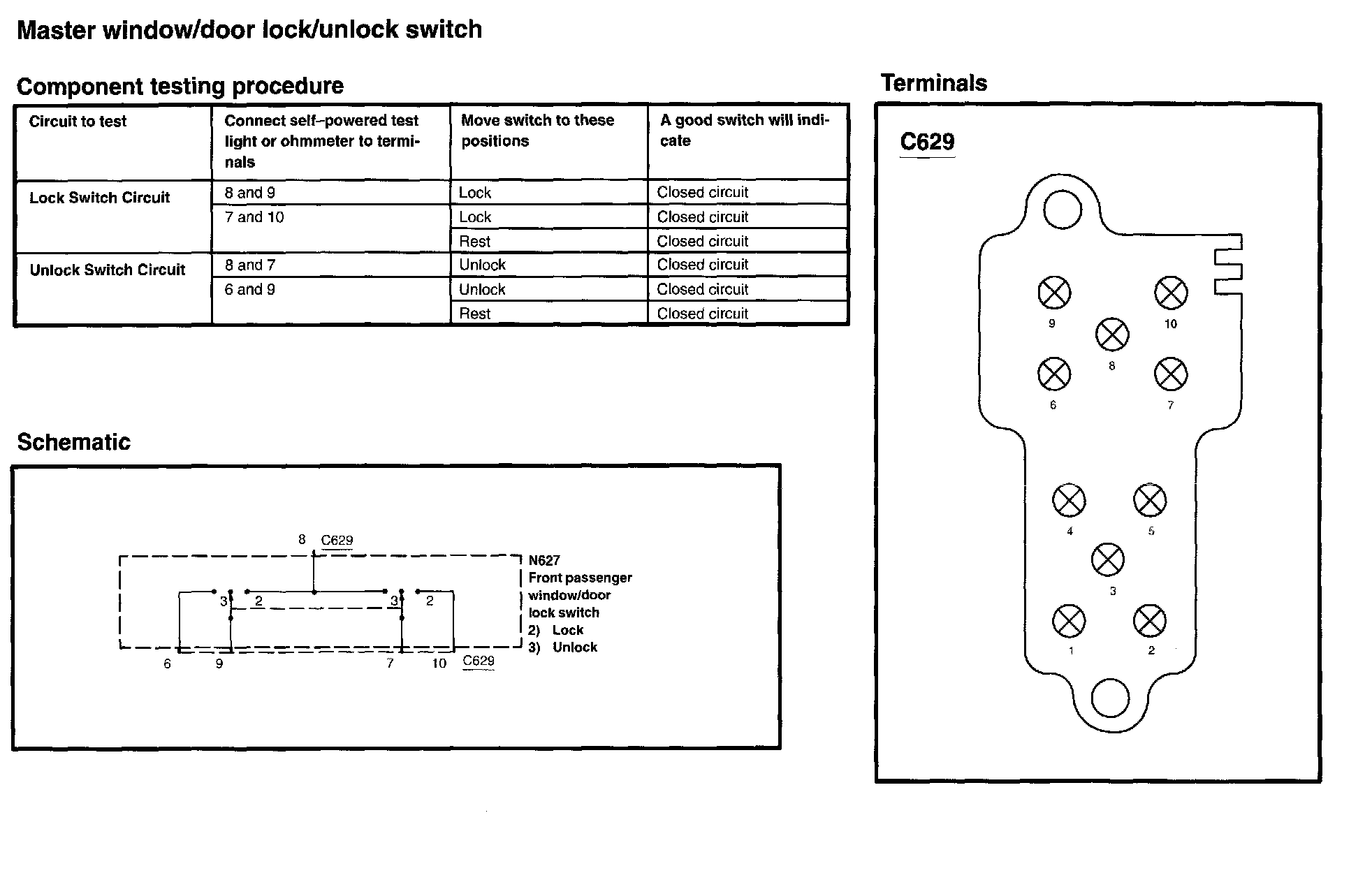

Master Window/door Lock/unlock Switch:

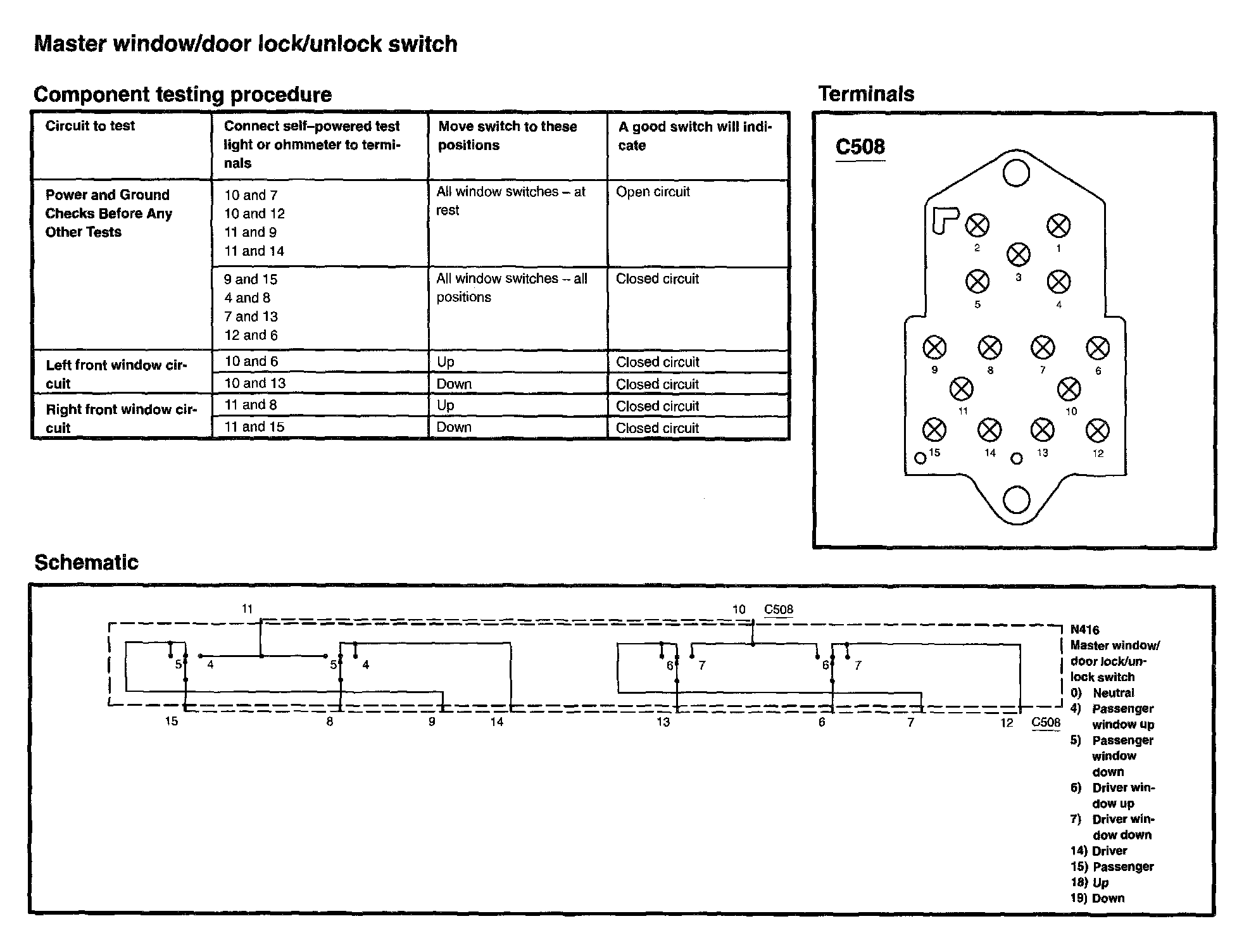

Master Window/door Lock/unlock Switch:

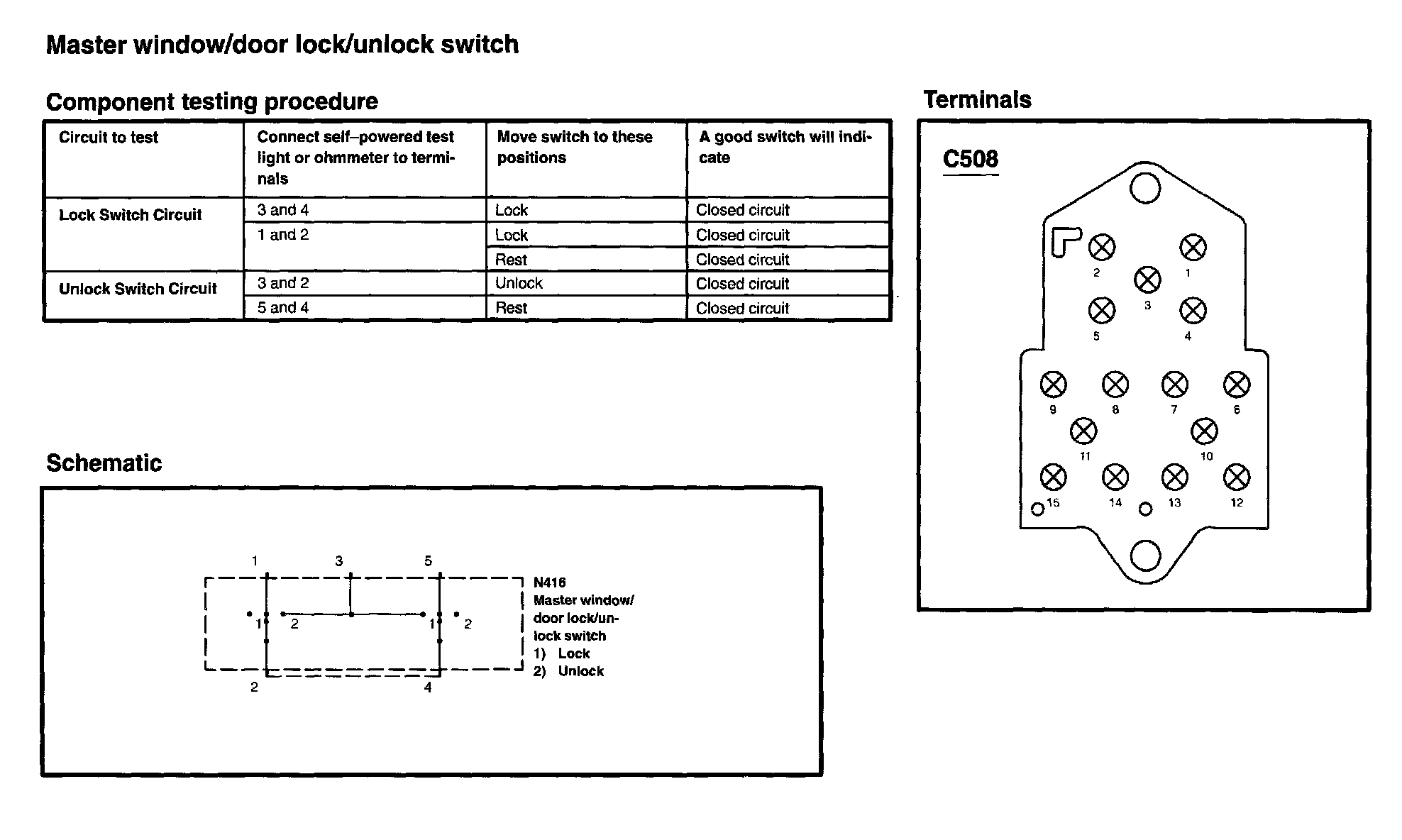

Master Window/door Lock/unlock Switch:

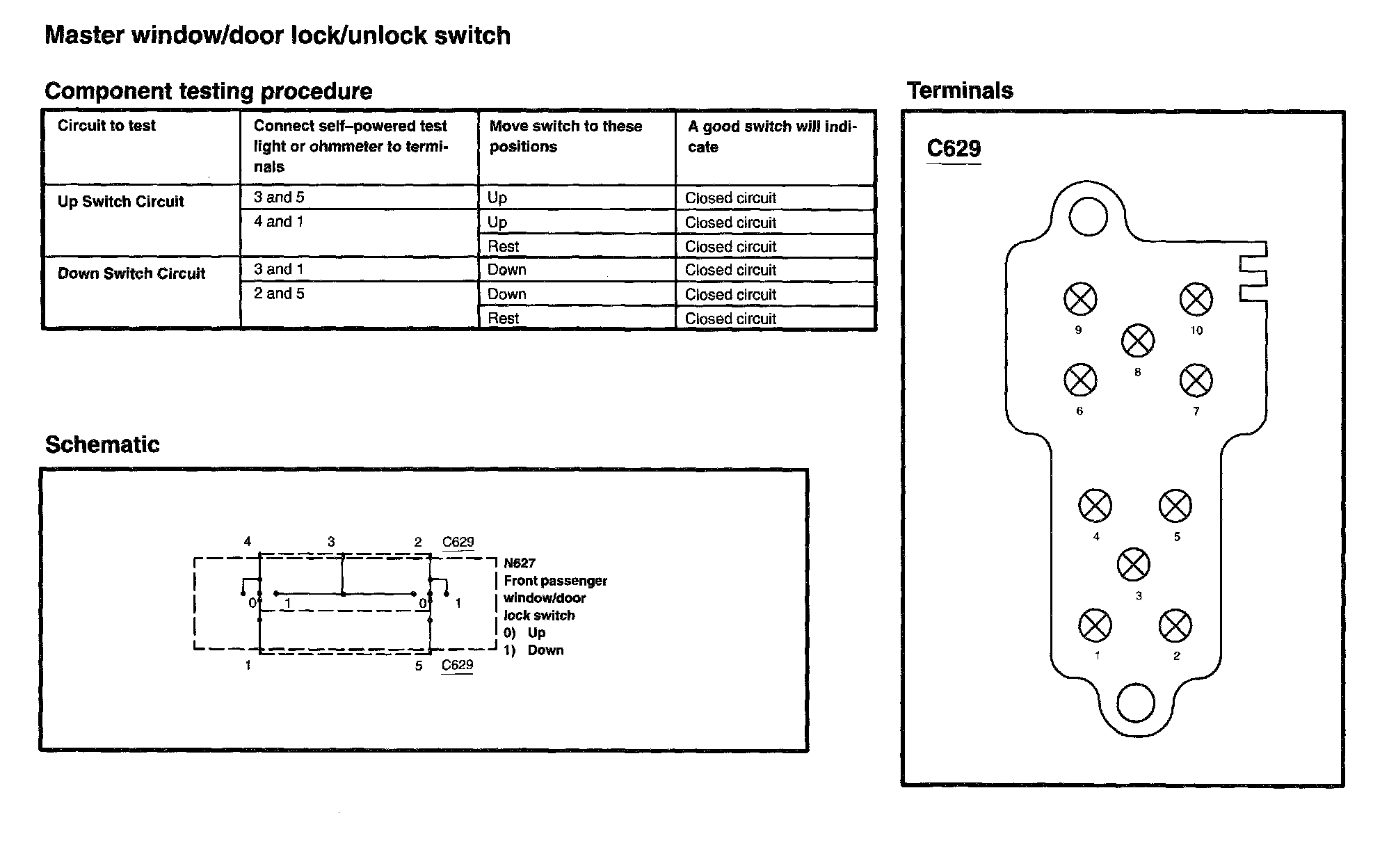

Master Window/door Lock/unlock Switch:
