EGR Tube: Service and Repair

REMOVAL
1. Remove the engine cover.

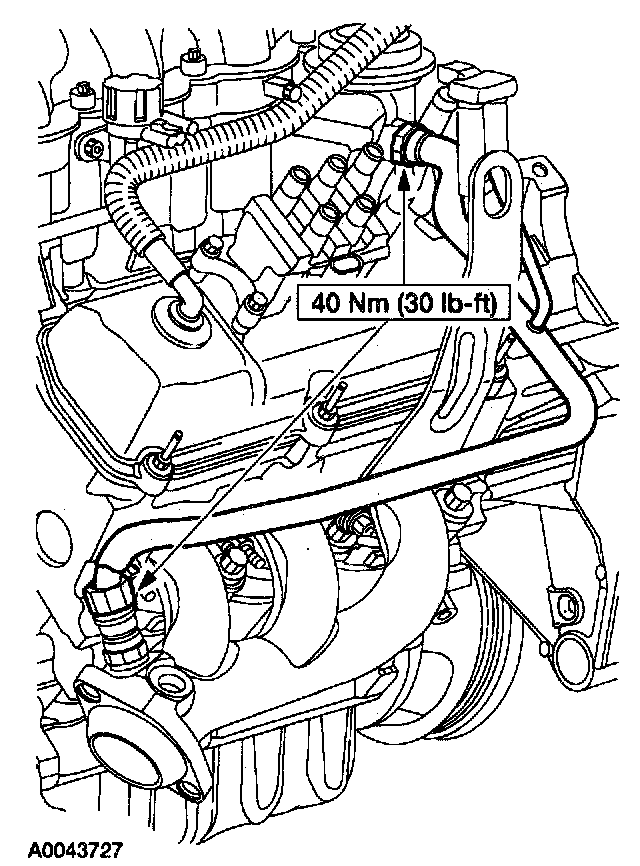

2. Remove the Exhaust Gas Recirculation (EGR) valve tube.
^ Disconnect and remove the differential pressure feedback sensor.
^ Disconnect the EGR valve tube fittings.
^ Remove the EGR valve tube.

INSTALLATION
1. To install, reverse the removal procedure.
