Disassembly and Assembly

DISASSEMBLY

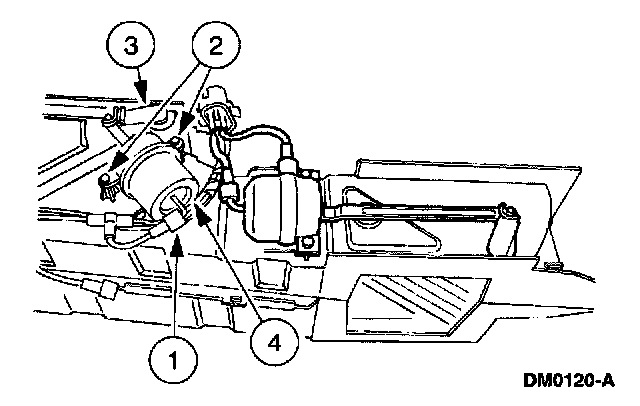

1. Remove the floor/defrost door vacuum control motor.
1 Disconnect vacuum lines.
2 Remove the screws.
3 Lift the vacuum control motor off the door crank.
4 Remove the vacuum control motor.

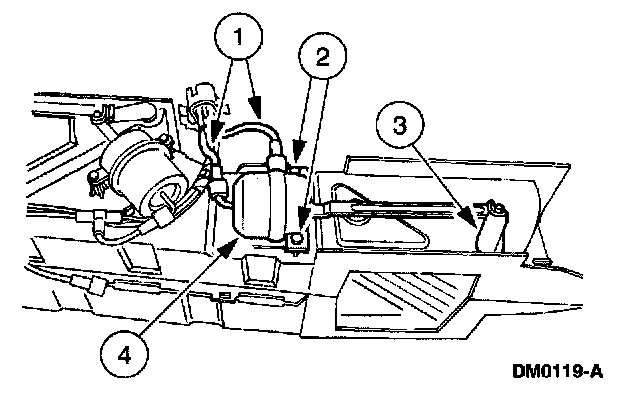

2. Remove the floor/panel door vacuum control motor.
1 Disconnect the vacuum line.
2 Remove the screws.
3 Lift the vacuum control motor off the door crank.
4 Remove the vacuum control motor.







3. Remove the vacuum lines.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
