Rear

Brake Disc - E-250, E-350, Single Rear Wheel

Removal and Installation
1. Remove the anchor plate.

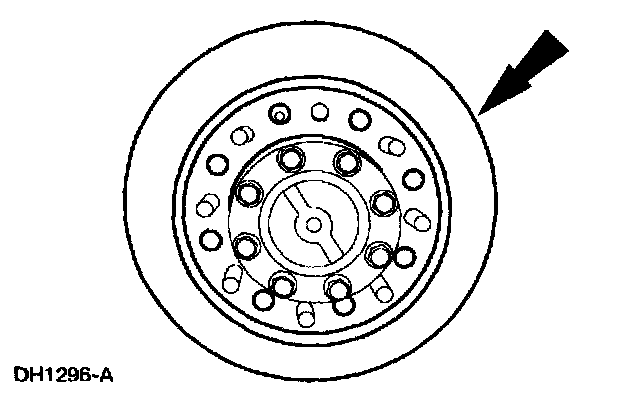

2. Mark the brake disc.

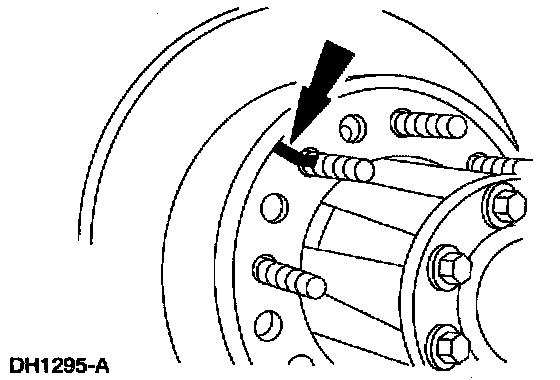

3. Remove the brake disc.
4. To install, reverse the removal procedure.
