Brake Caliper Anchor Plate

Brake Caliper Anchor Plate - E-250, E-350, E-450

Removal
1. Remove the pads.

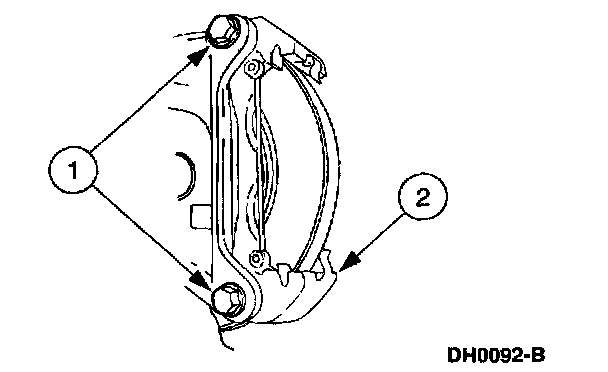

2. Remove the front disc brake caliper anchor plate.
1 Remove the two front disc brake caliper anchor plate bolts.
2 Remove the front disc brake caliper anchor plate.

Installation

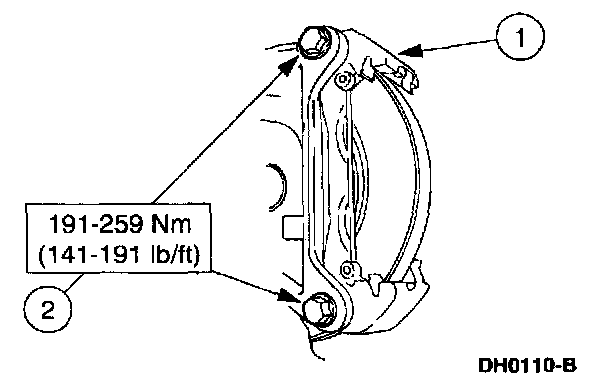

1. Install the front disc brake caliper anchor plate.
1 Position the front disc brake caliper anchor plate.
2 Install the front disc brake caliper anchor plate bolts.
2. Install. the pads.
