Test A

PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

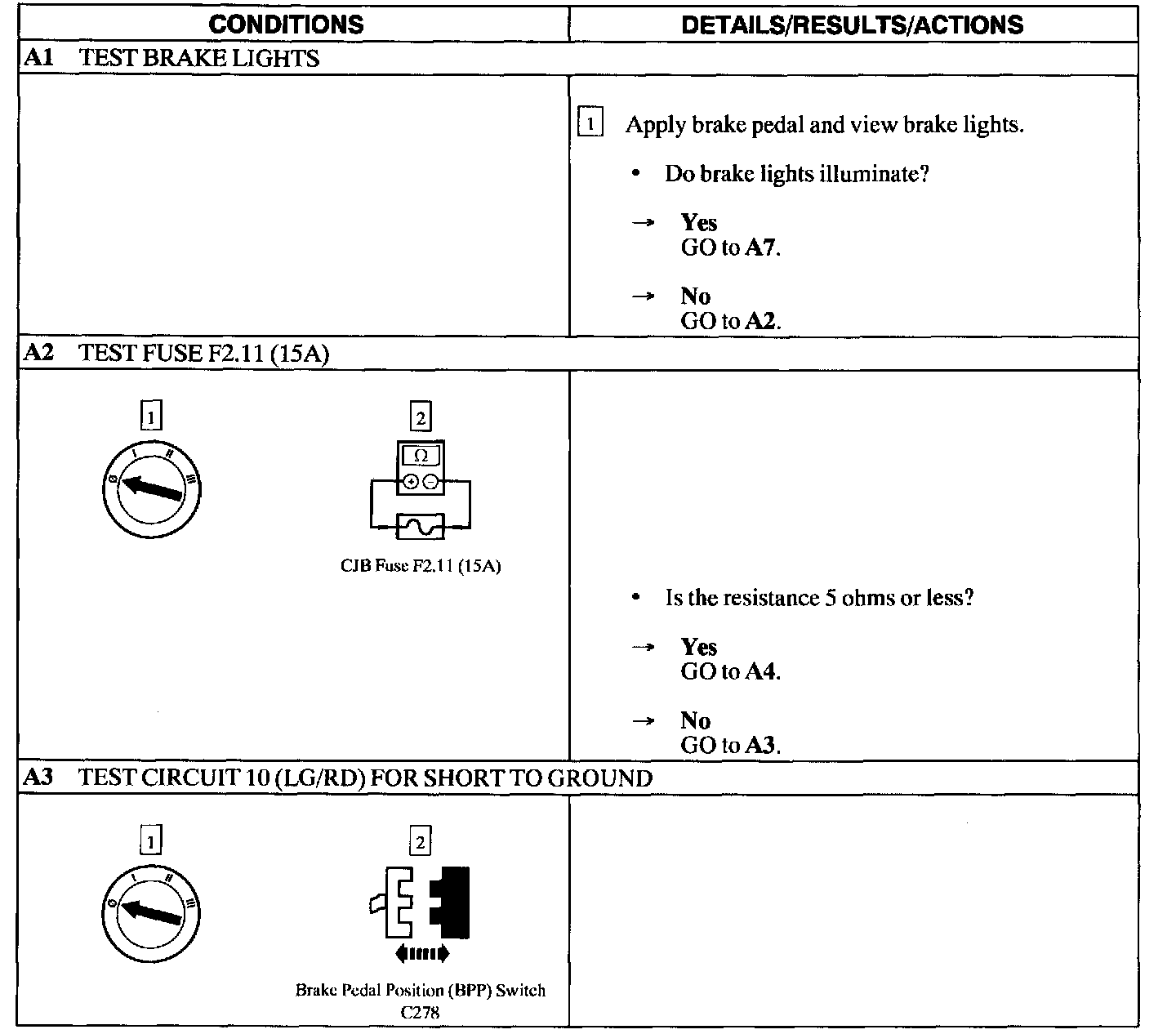

Test A1-A3

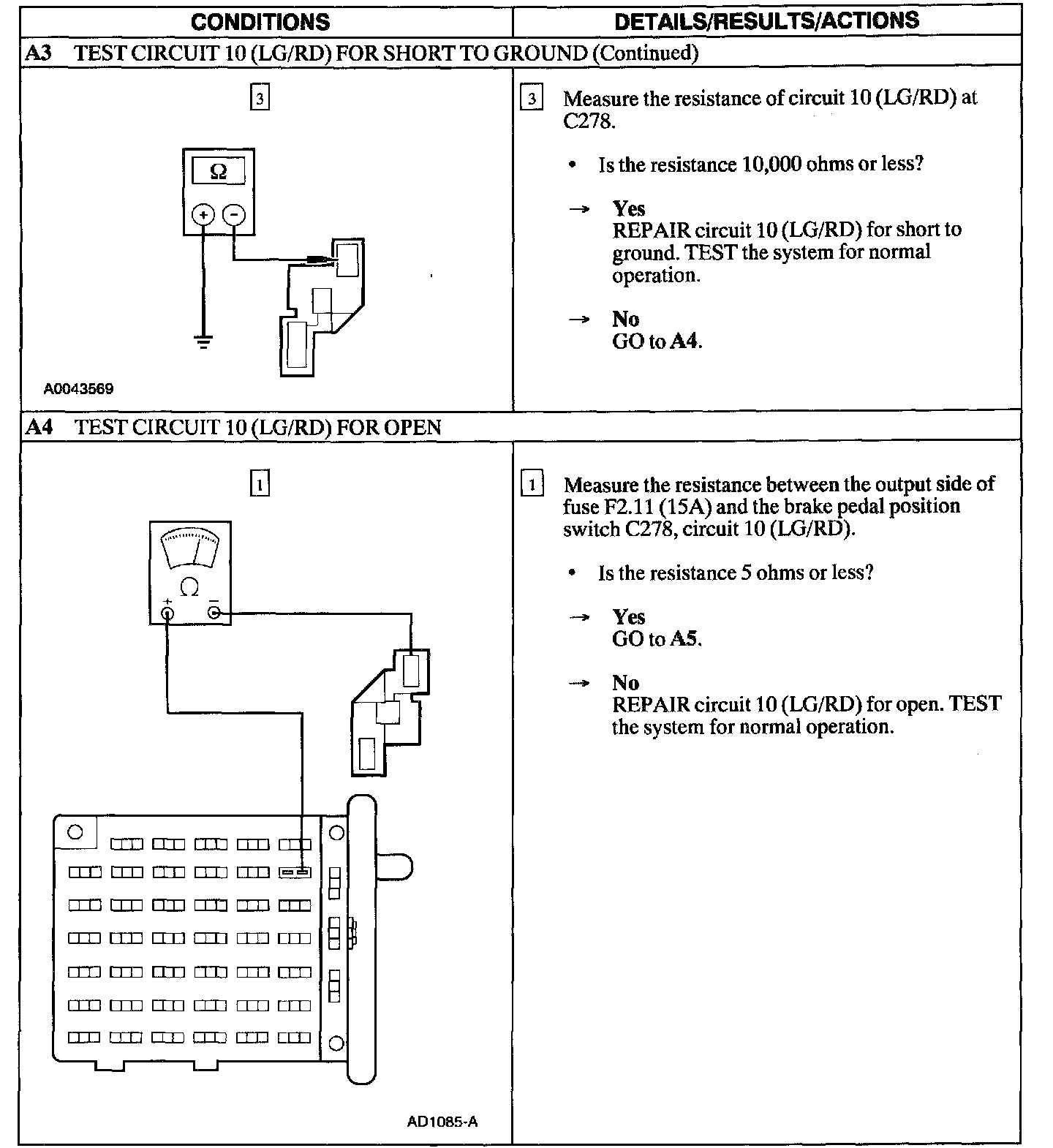

Test A3-A4





Test A5-A6

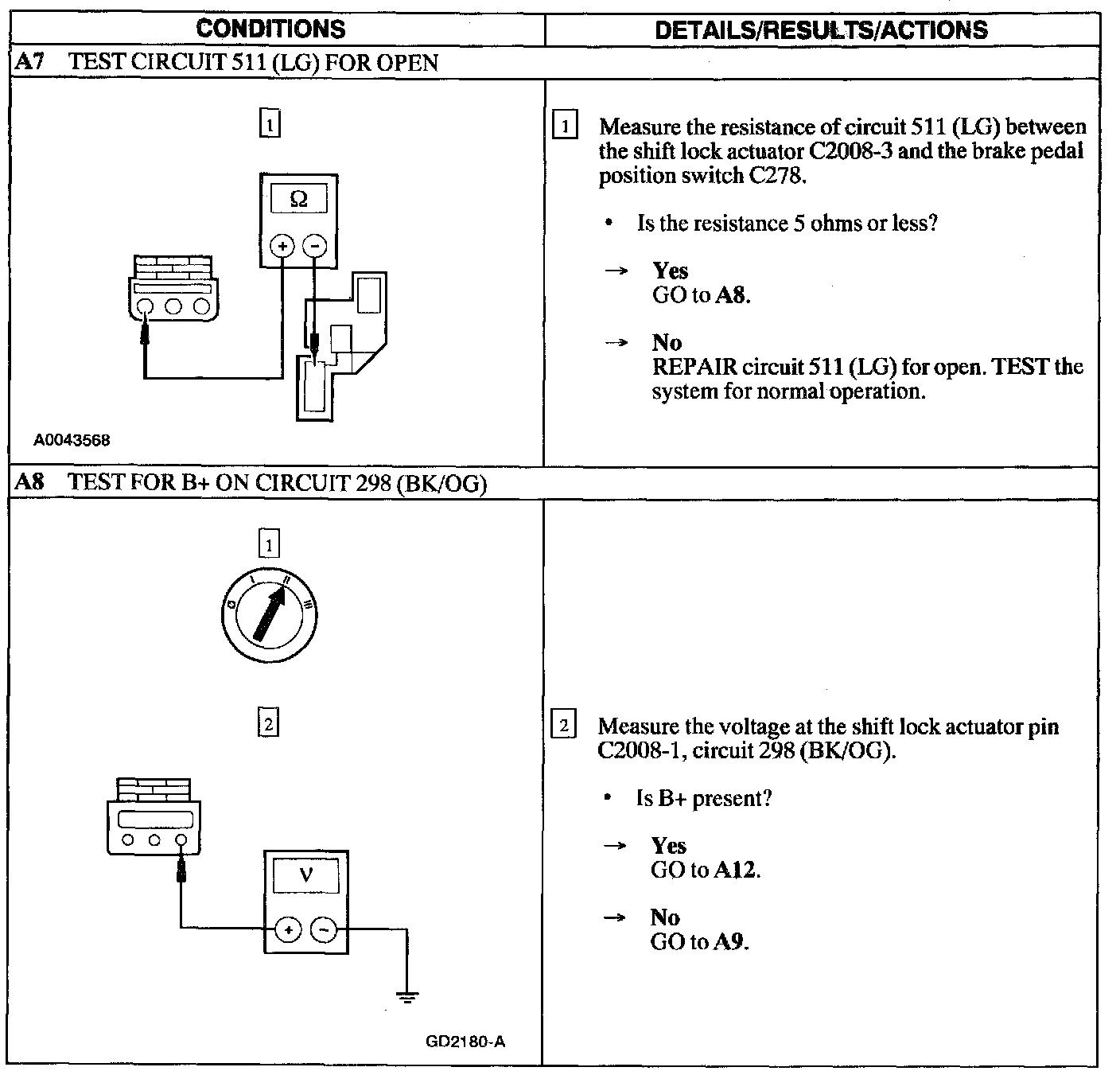

Test A7-A8

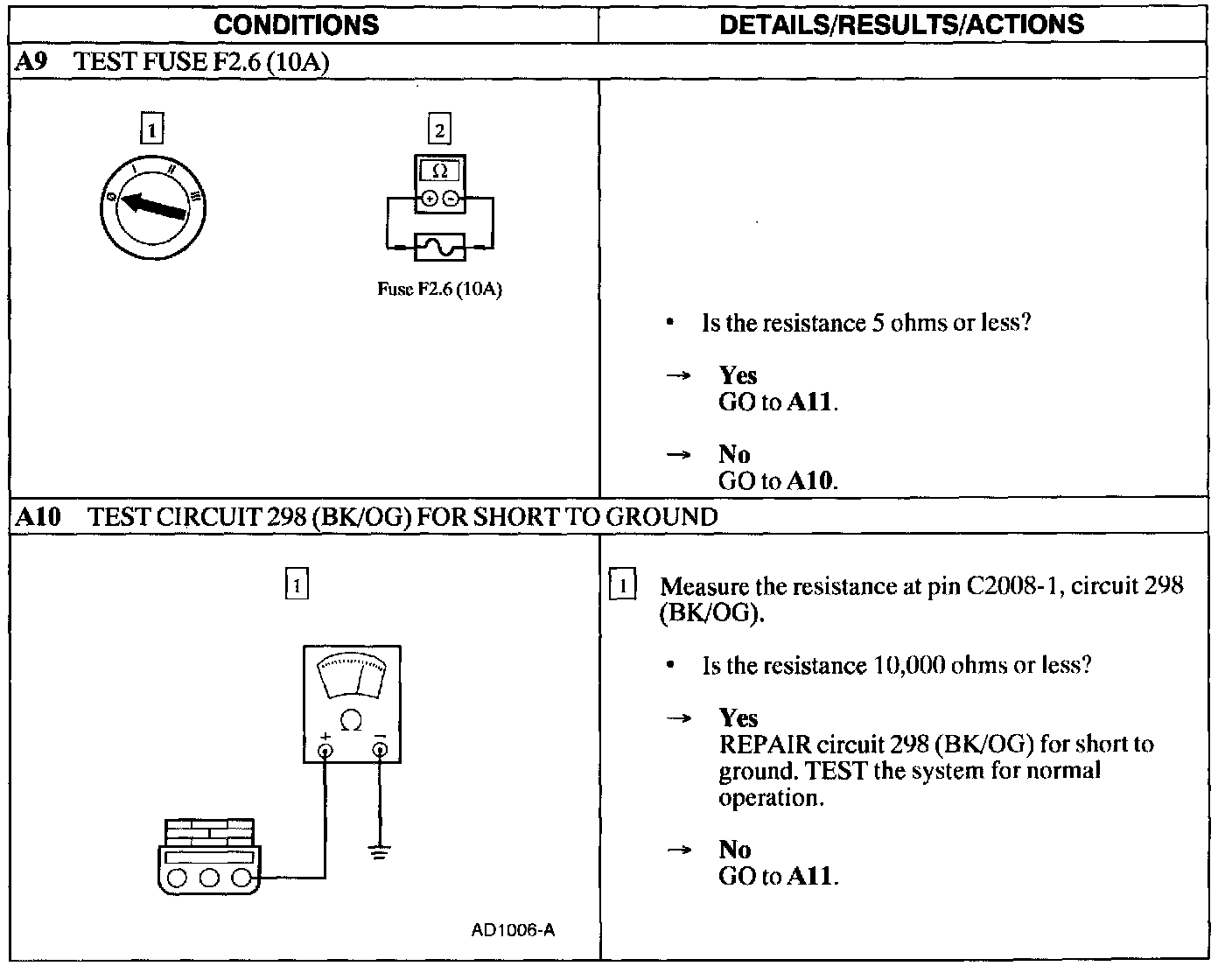

Test A9-A10

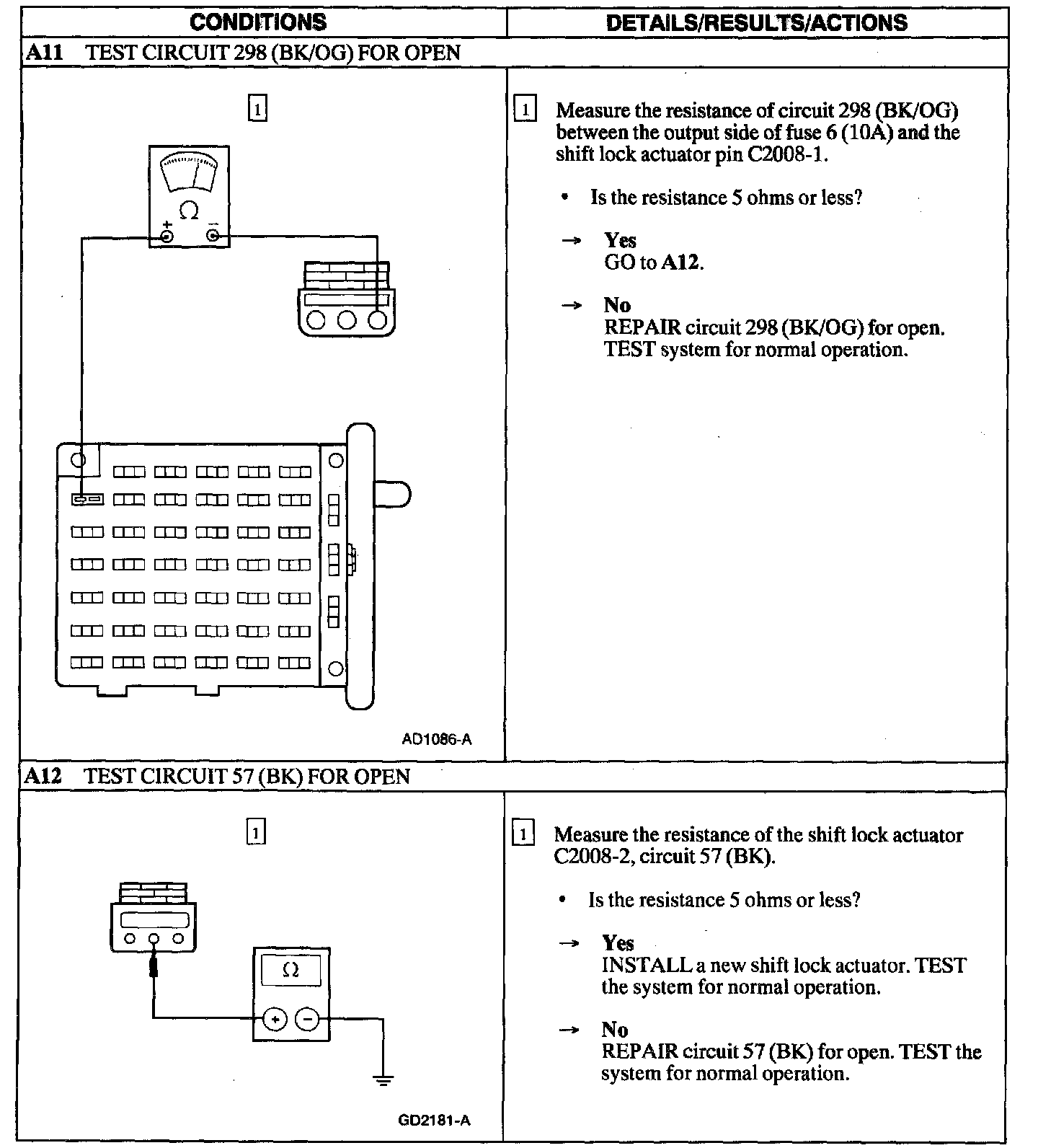

Test 11-A12
