EGR Tube: Service and Repair

REMOVAL
1. Remove the engine cover.







2. Remove the differential pressure feedback sensor.
^ Disconnect the electrical connector.
^ Remove the sensor and hoses from the exhaust manifold to ECR valve tube.

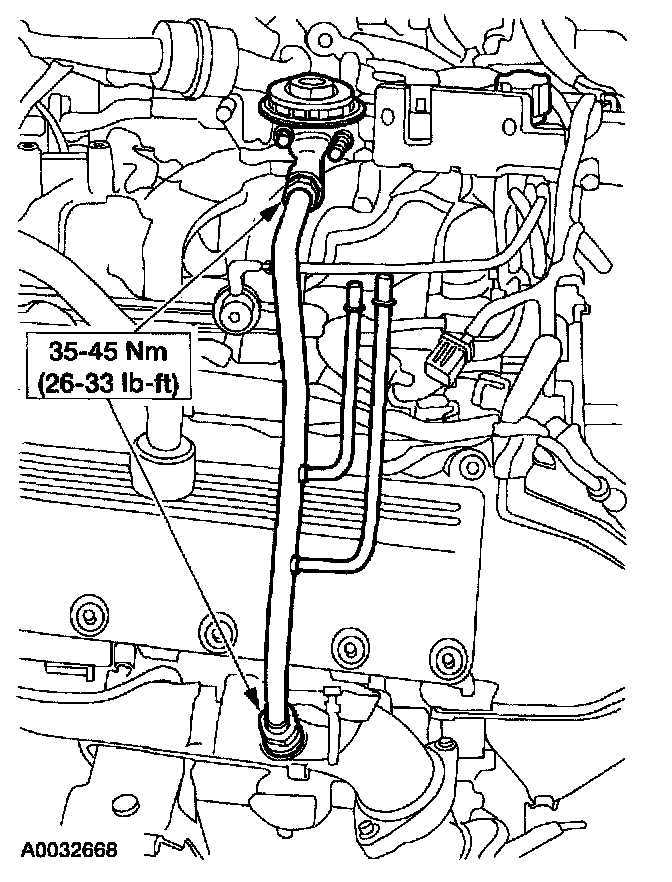

3. Remove the EGR valve tube.
^ Disconnect the upper and lower fittings.
^ Remove the tube.

INSTALLATION
1. To install, reverse the removal procedure.
