Alternator Brush: Service and Repair

REMOVAL
1. Remove the Generator (GEN).







2. Remove the generator brush and terminal holder and the Voltage Regulator (VR).
1 Remove the screws.
2 Remove the generator brush and terminal holder and the voltage regulator.

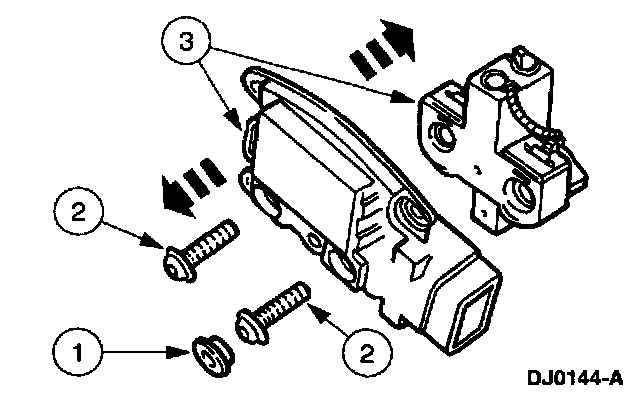

3. Separate the generator brush and terminal holder from the voltage regulator.
1 Remove the screw cap.
2 Remove the screws.
3 Separate the generator brush and terminal holder from the voltage regulator.

INSTALLATION







1. Install the brush and terminal holder on the voltage regulator.
1 Position the brush and terminal holder on the voltage regulator.
2 Install the screws.
3 Install the screw cap.

CAUTION: Make sure screw cap is installed over Test Terminal A to prevent accidental shorting of the battery positive (B+) connection.

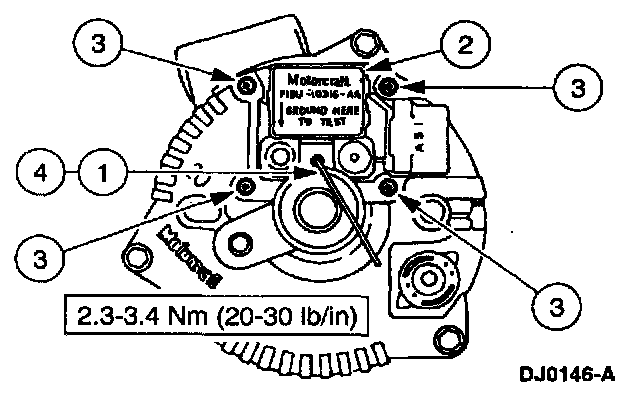

2. Install the generator brush and terminal holder and the voltage regulator.
1 Depress the brushes and insert a wire to hold them.
2 Position the generator brush and terminal holder and the voltage regulator.
3 Install the screws.
4 Remove the wire.

3. Install the generator.
