Fuel Pressure Test Port: Service and Repair

REMOVAL

WARNING: FUEL IN THE FUEL SYSTEM REMAINS UNDER HIGH PRESSURE EVEN WHEN THE ENGINE IS NOT RUNNING.

1. Remove the engine cover.
2. Remove the air cleaner assembly.
3. Relieve the fuel pressure.

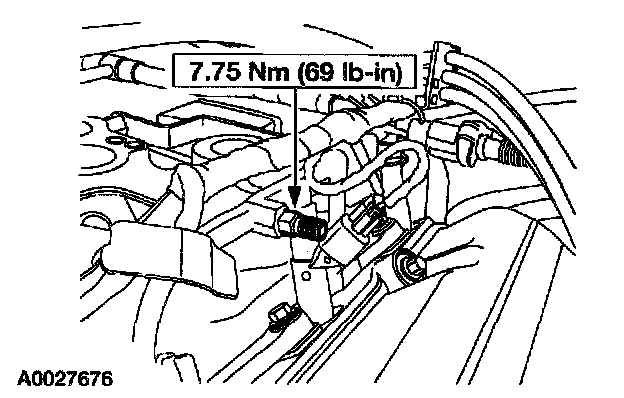

4. Remove the fuel pressure relief valve with the fuel pressure relief valve cap.

NOTE: Intake removed for clarity.

INSTALLATION
1. To install, reverse the removal procedure.
