Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the air cleaner assembly.
3. Remove the accelerator control snow shield.

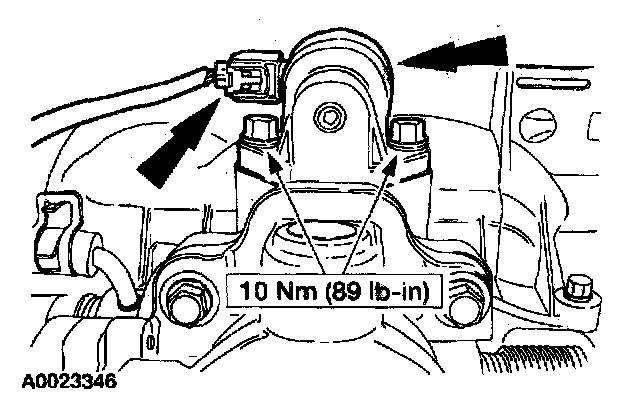

4. Disconnect the Idle Air Control (IAC) valve electrical connector and remove the bolts and the IAC valve.

INSTALLATION
1. To install, reverse the removal procedure.
