Compass Display

REMOVAL

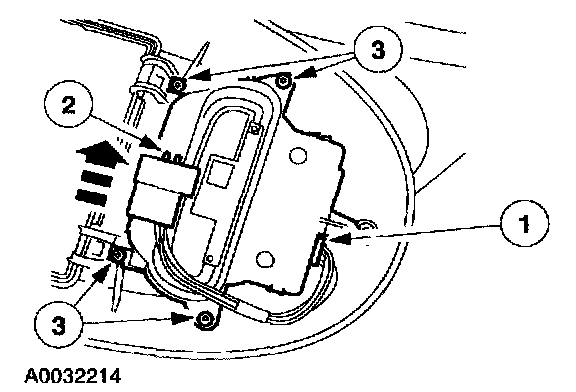

1. Remove the overhead console.







2. Remove the compass display.
1 Disconnect the electrical connector.
2 Depress the tab and remove the electrical connector.
3 Remove the screws.

INSTALLATION
1. To install, reverse the removal procedure.
